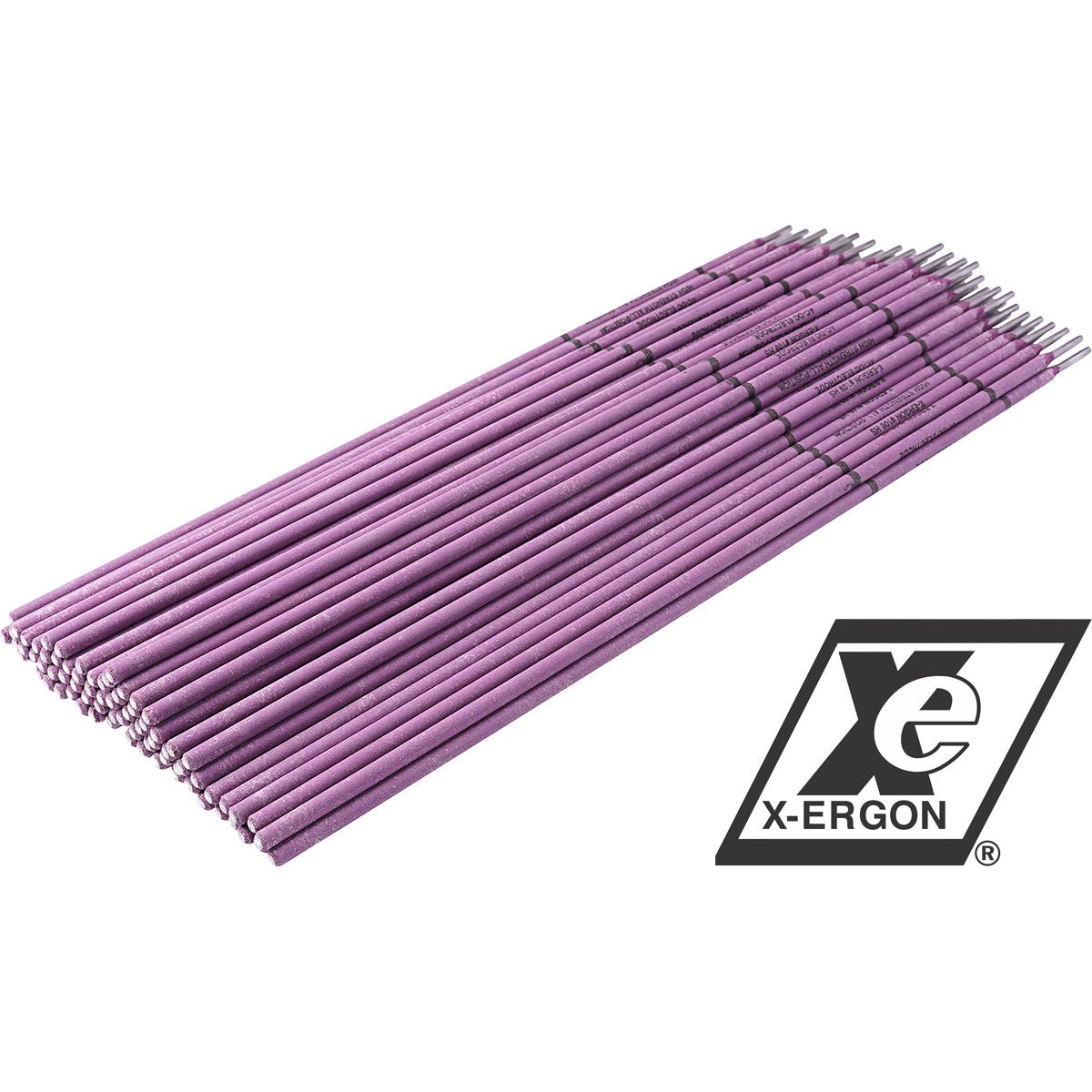

109 High Strength Electrode 3/32
(Pack of
5.0)
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.
• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Frequently Bought Together
109 High Strength Electrode 1/8
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire .035X10Lb
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.023"
Couldn't load pickup availability
Flint For Spring Loaded Trigger Torch Lighter
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.023"
Couldn't load pickup availability
9-6003 Plasma Cutting Shield Cup
Couldn't load pickup availability
9-6507 Plasma Cutting Gas Distributor
Couldn't load pickup availability
Product Description
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10950000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 103,000 PSI |
| Elongation | 13 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 96 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.0 lb |
