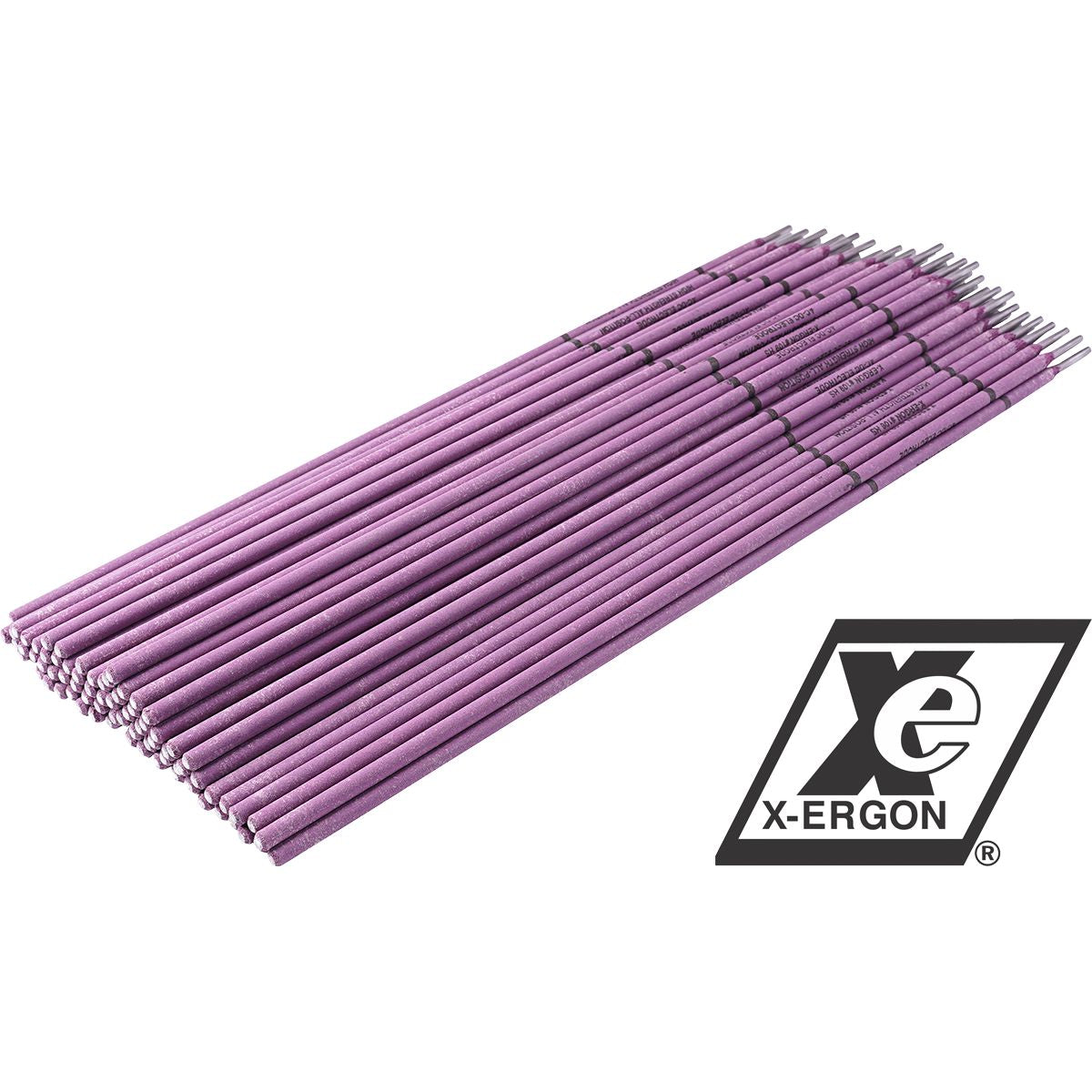

109 High Strength Electrode 1/8
(Pack of
5.0)
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.
• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Frequently Bought Together
660 Mild Steel Flux Core Low Hydrogen Mig Wire .045X10Lb
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode 3/32
Couldn't load pickup availability
602 High -Strength Flux Core Electrode 1/16X33LB SPOOL
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
20463 Plasma Cutting Swirl Baffle
Couldn't load pickup availability
177890 Plasma Cutting Tip
Couldn't load pickup availability
8-7502 Plasma Cutting Electrode
Couldn't load pickup availability
Product Description
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10940000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 1/8 " |
| Tensile Strength | 103,000 PSI |
| Elongation | 13 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 96 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.26 lb |
