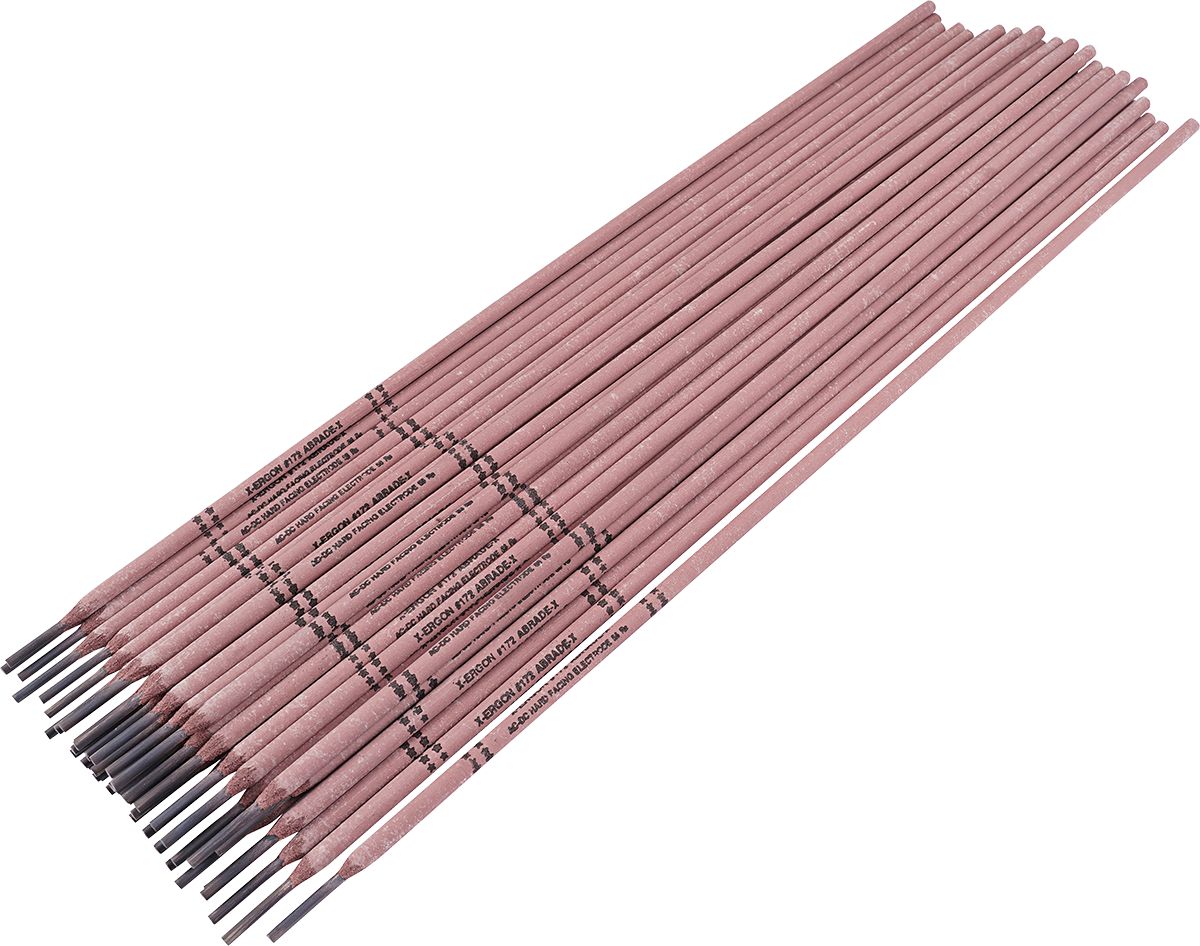

172 Intermediate Abrasion And Impact Alloy 1/8X18
(Pack of
5.0)
Produces a very tough martensite deposit that will resist scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass overlays
• For use on carbon and abrasion resistant alloy steels including manganese steels
• Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8 mm³ vol. loss
Frequently Bought Together
7350 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
H7 Carbide Hard Facing MIG Welding Wire 1/16"
Couldn't load pickup availability
7770 Hard Facing Buildup Stick Rod Electrode 3/32"
Couldn't load pickup availability
Flex-E-6001 Seam Sealer with Turbo Mixer
Couldn't load pickup availability
Zinc-Rich Weld-Through Primer
Couldn't load pickup availability
21 Compartment Small Drawer
Couldn't load pickup availability
172 Intermediate Abrasion And Impact Alloy 5/32X18
Couldn't load pickup availability
281 Martensitic Stick Rod Electrode 1/8"
Couldn't load pickup availability
172 Latch Bar And Dutchman Hardfacing Alloy 1/8X18
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Flat Soapstone 1/2"
Couldn't load pickup availability
Pipe Wrap Around
Couldn't load pickup availability
Anti Splatter Heat Resistant Welding Mat 2 x 3'
Couldn't load pickup availability
Product Description
Produces a very tough martensite deposit that will resist scratching, sliding and gouging abrasion while resisting moderate to heavy impact.• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass overlays
• For use on carbon and abrasion resistant alloy steels including manganese steels
• Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8 mm³ vol. loss
Technical Specifications
| Item#: | EG17240000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Base Metal | Steel To Steel |
| Hardness | 58 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.265 lb |
