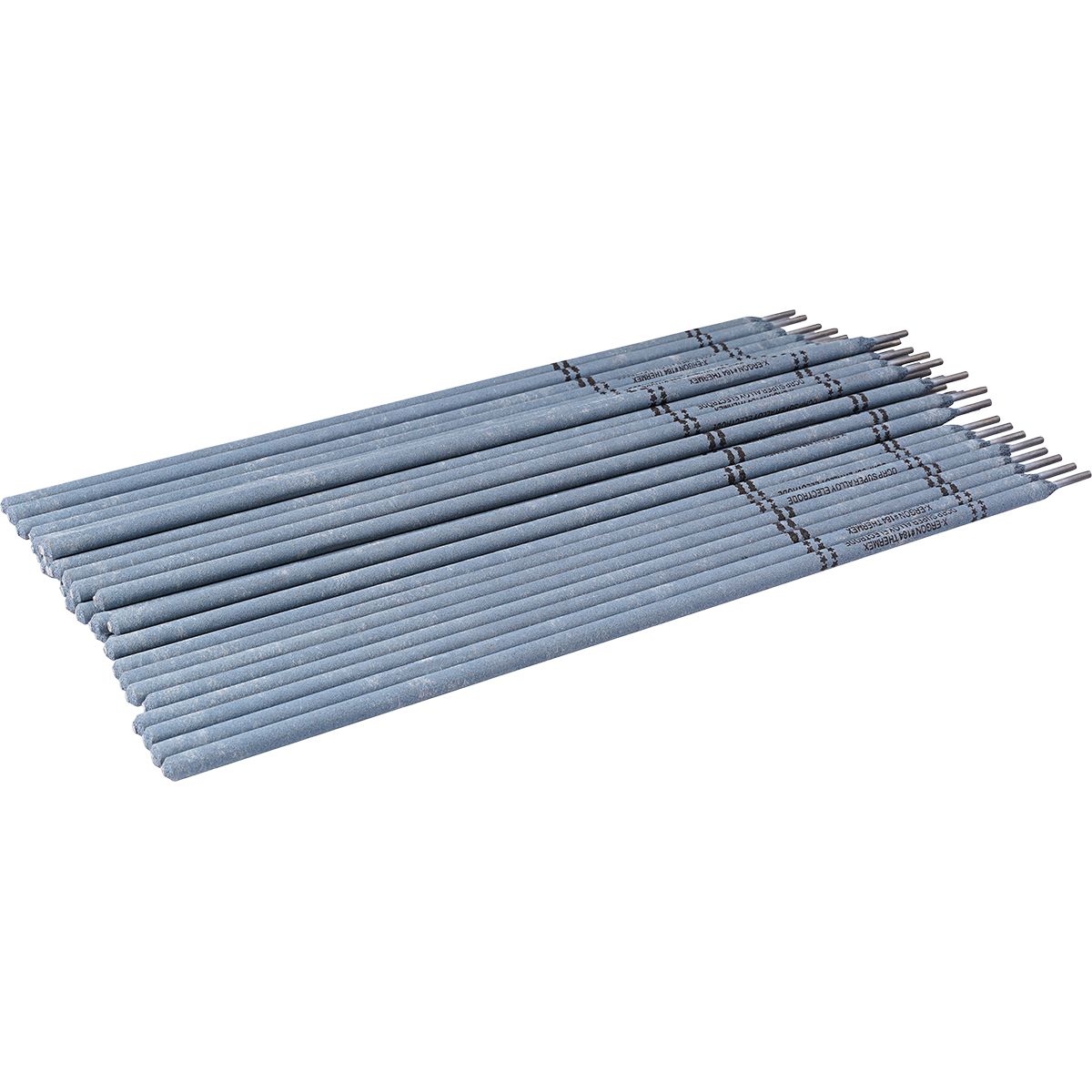

184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
(Pack of
5.0)
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.
• Versatile – Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
• Corrosion Resistant – Highly resistant to chloride pitting and stress corrosion cracking
• Excellent for dissimilar nickel alloys and nickel to ferrous alloys
• Excellent for cryogenic applications
• Heat resistant to 1800°F/982°C
• Resists cracking when heated and cooled repeatedly
• Tensile Strength: 110,000 PSI/758 MPa
• Yield Strength: 95,000 PSI/655 MPa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/586 MPa – 1800°F/982°C: 25,000 PSI/172 MPa
• Elongation: 30%
• Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
• Current: DCEP (DC+)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
ER308L Stainless Steel MIG Welding Wire 0.045"
Couldn't load pickup availability
3880 Stainless Steel Stick Rod Electrode 1/16"
Couldn't load pickup availability
3881 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
Industrial Graphite Rod 1 x 12"
Couldn't load pickup availability
177890 Plasma Cutting Tip
Couldn't load pickup availability
8-7502 Plasma Cutting Electrode
Couldn't load pickup availability
192047 Plasma Cutting Electrode
Couldn't load pickup availability
Product Description
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.• Versatile – Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
• Corrosion Resistant – Highly resistant to chloride pitting and stress corrosion cracking
• Excellent for dissimilar nickel alloys and nickel to ferrous alloys
• Excellent for cryogenic applications
• Heat resistant to 1800°F/982°C
• Resists cracking when heated and cooled repeatedly
• Tensile Strength: 110,000 PSI/758 MPa
• Yield Strength: 95,000 PSI/655 MPa
• Hardness: 21 Rc
• Elevated Temperature Tensile Data: – 1000°F/538°C: 85,000 PSI/586 MPa – 1800°F/982°C: 25,000 PSI/172 MPa
• Elongation: 30%
• Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
• Current: DCEP (DC+)
Technical Specifications
| Item#: | EG18450000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 110,000 PSI |
| Yield Strength | 95,000 PSI |
| Base Metal | Nickel Alloys; Dissimilar Metals |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.08 lb |
