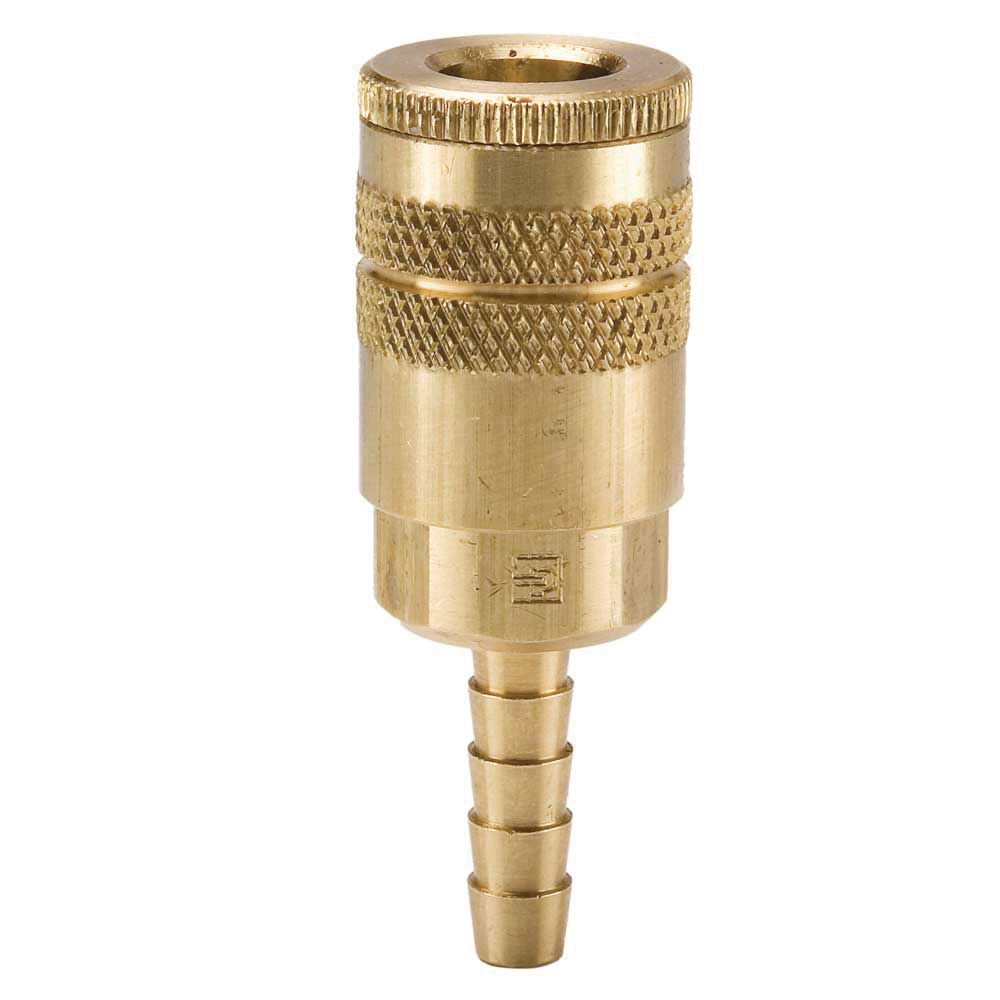

20 Series Coupler, Brass, Standard Industrial, 300PSI, Hose Barb, 1/4" Body Size, 3/8" Hose ID
(Pack of
1)
SKU:1268900 Item#: 1268900
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.
• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Universal Air Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
Hose End Brass 3/8" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Technical Specifications
| Item#: | 1268900 |
|---|---|
| Manufacturer Model #: | B20-5B |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 1/4 " |
| Working Pressure | 300 PSI |
| Material | Brass |
| Hose I.D. | 3/8 " |
| Length | 2.49 " |
| Seal Material | Nitrile |
| Hex Size | 0.75 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
