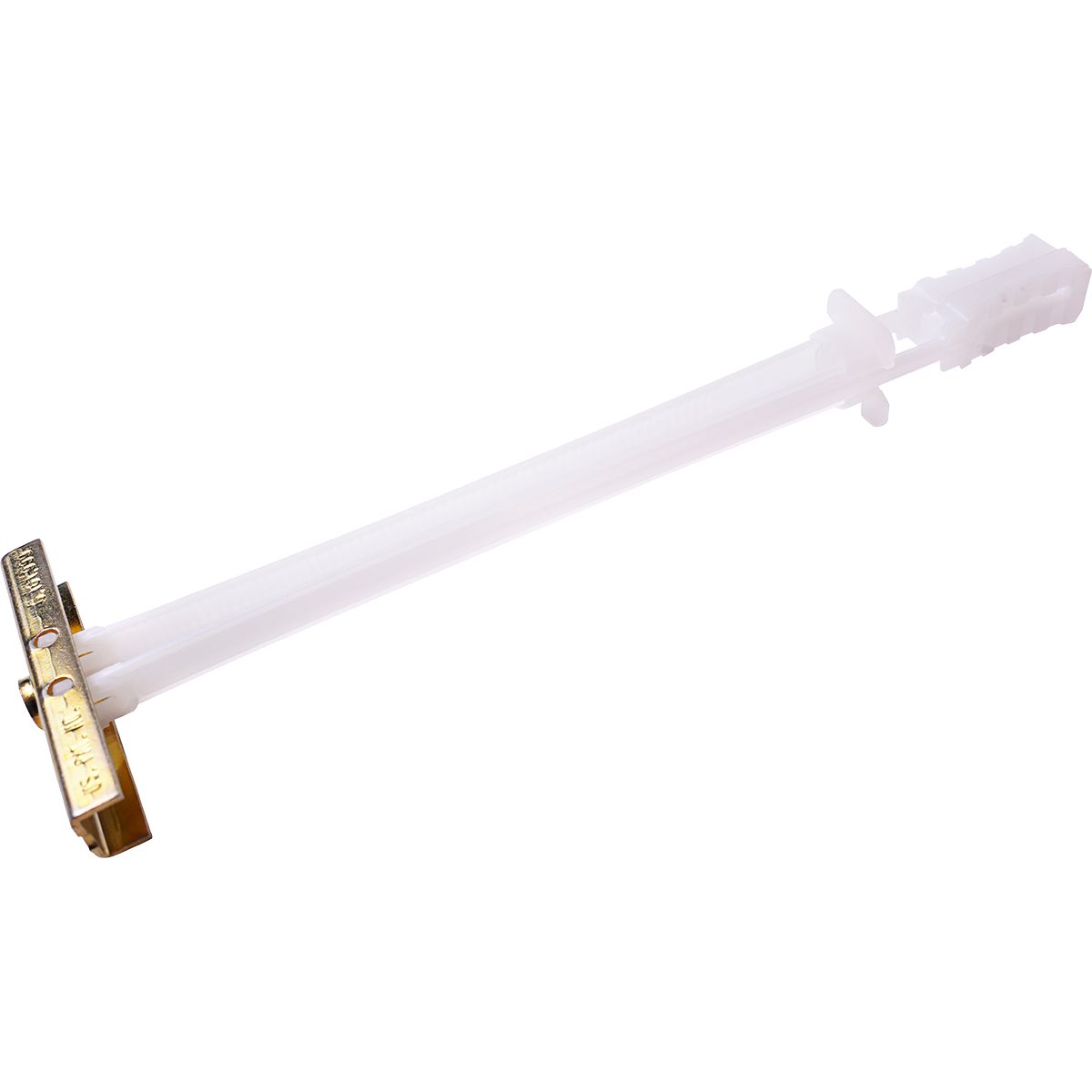

3/16-24 (10-24) Joggle-A-Toggle Plus Wall Anchor
(Pack of
25)
SKU:DY09700500 Item#: DY09700500
• Pre-installs without a bolt
• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Frequently Bought Together
Masonry Sleeve Anchor Steel 1/4 x 2-1/4"
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 1"
$0.00
Couldn't load pickup availability
Masonry Anchor TORX® Flat Head Steel 1/4 x 1-3/4"
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
$0.00
Couldn't load pickup availability
DIN 9021B Fender Washer Low Carbon Steel 18mm
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M10-1.5 x 40mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Tubular Anchor Plastic White #4 to #6
$0.00
Couldn't load pickup availability
SNAPTOGGLE® Toggle Bolt Anchor 3/16-24
$0.00
Couldn't load pickup availability
E-Z Toggleâ„¢ Self-Drilling Wall Anchor
$0.00
Couldn't load pickup availability
Product Description
• Pre-installs without a bolt• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Technical Specifications
| Item#: | DY09700500 |
|---|---|
| Type | Toggle Bolt Anchor |
| Size | #10-24 |
| Diameter | 3/16 " |
| Material | Steel/Plastic |
| Thread | Coarse |
| Thread Pitch | 24 |
| Drill Size | 1/2 " |
| Grip Range | 3/8" - 2-1/2" (9mm - 64mm) |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 356 lb |
| Tensile Proof Test Load In Concrete | 714 lb |
| Bolt Size | #10-24 |
| Pullout Ultimate Average Lbs.Steel Thickness 1 / 2" | 918 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
