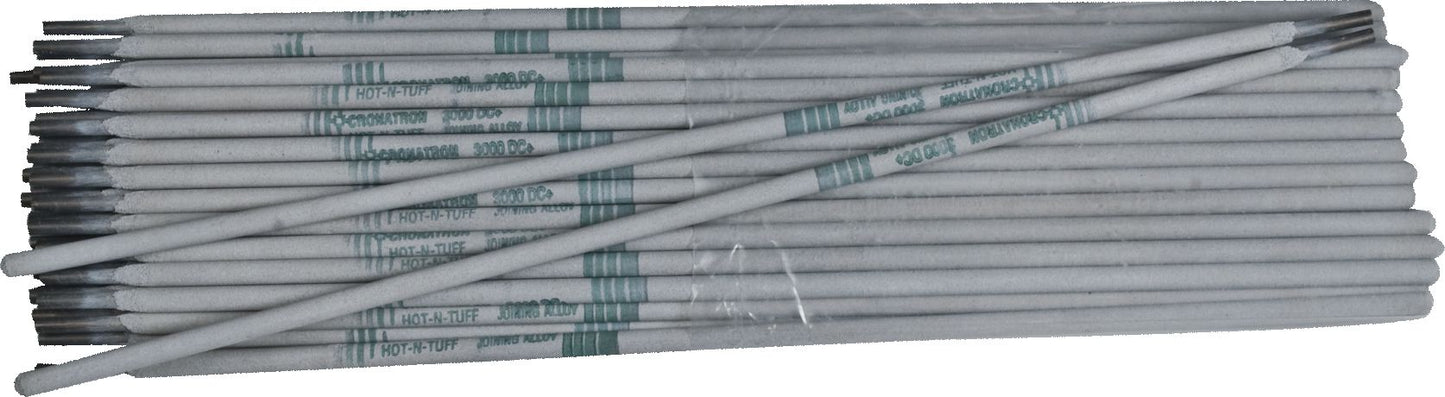

3000 Nickel Stick Rod Electrode, Flux Coated, 125 to 145 Amps, 33% Elongation, DCRP Polarity, Extremely Corrosion Resistant, 5/32"
(Pack of
5)
SKU:CW1990 Item#: CW1990
Compatible with Inconel, other nickel-based alloys, Monel® and dissimilar alloys.
Superior Advantages
• Extremely corrosion-resistant
• High temperature usage – up to 2,000°F (1,093°C)
• Low temperature usage – down to –320°F (–196°C)
• Maximum versatility
• Dissimilar metals joining
Withstands operating temperatures from –320°F to +2,000°F (–196°C to +1,093°C).
Tensile Strength: 100,000 PSI
Elongation: 33%
Polarity: DC Reverse
Typical Applications
• Furnaces and boilers
• Heat treat baskets
• Power plants
• Chemical processing
Usage ProcedureUse DC reverse polarity with normal maintenance welding procedures. Surface should be as clean as possible. Hold a short arc and tilt Âelectrode 10° in the direction of travel. Remove slag between passes. Preheating the weld metal is not necessary unless the base metal and/or thickness require it. Do not weave more than twice the diameter of the core wire.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
382 Stainless Steel Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
E308L-16 Stainless Steel Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
123T Stainless Steel Tig Wire 1/16X36
$0.00
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.023"
$0.00
Couldn't load pickup availability
Rosin Core Solder 0.032"
$0.00
Couldn't load pickup availability
Weldpro AC/DC TIG and Stick Welder Kit
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
Product Description
Compatible with Inconel, other nickel-based alloys, Monel® and dissimilar alloys.Superior Advantages
• Extremely corrosion-resistant
• High temperature usage – up to 2,000°F (1,093°C)
• Low temperature usage – down to –320°F (–196°C)
• Maximum versatility
• Dissimilar metals joining
Withstands operating temperatures from –320°F to +2,000°F (–196°C to +1,093°C).
Tensile Strength: 100,000 PSI
Elongation: 33%
Polarity: DC Reverse
Typical Applications
• Furnaces and boilers
• Heat treat baskets
• Power plants
• Chemical processing
Usage ProcedureUse DC reverse polarity with normal maintenance welding procedures. Surface should be as clean as possible. Hold a short arc and tilt Âelectrode 10° in the direction of travel. Remove slag between passes. Preheating the weld metal is not necessary unless the base metal and/or thickness require it. Do not weave more than twice the diameter of the core wire.
Technical Specifications
| Item#: | CW1990 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 100,000 PSI |
| Elongation | 33 % |
| Base Metal | Nickel |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.29 lb |
