Home Hydraulics Hydraulic Hose Thermoplastic 37AL Hydraulic Hose Thermoplastic 0.425" x 250'
Hose
DV_ZoomOriginal_I_20432 03.jpg
DV_ZoomOriginal_I_20432 03.jpg

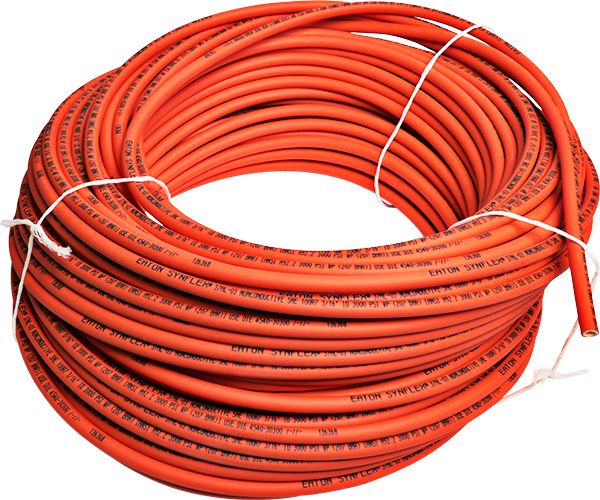

37AL Hydraulic Hose, Polyurethane, Braided Synthetic Fiber, Orange, 3/16" ID, 0.425" OD, 250' Length, 3000PSI, SAE 100R7NC
(Pack of 250)

Item#: 20432 03

Synflex®

• Agency Ratings: SAE 100R7; Non-Conductive SAE J517
• Fittings Certified: 903 Series
• Agency Approvals: ANSI A92.2 for vehicle-mounted devices
• Construction:
– Inner Tube: Polyester core tube
– Reinforcement: Braided synthetic fiber
– Cover: Orange, non-perforated, non-stick polyurethane
• Temperature Range:
– Petroleum-based fluids: –65°F to +212°F (–54°C to +100°C)
– Water-based fluids: –65°F to +140°F (–54°C to +60°C)
• Application Notes:– Less than 50 microamperes leakage when subjected to 75,000 volts/ft. for five minutes– UV- and abrasion-resistant cover– Flexible in low temperatures– Used in electric utility truck systems and other mobile boom equipped vehicles

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


SAE R16S Hydraulic Hose Rubber 0.54" x 500'

Item#: 1562965A

Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot

Item#: DY56002010

3TR7 Hydraulic Thermoplastic Hose 0.43" x 50'

Item#: 1692555

Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"

Item#: P27050

Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"

Item#: P27035

Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"

Item#: P27020

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11948

Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"

Item#: P28925M01

Push-Button Air Coupler Steel 1/4" x 1/4-18

Item#: 64497

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

3TR8N Hydraulic Thermoplastic Hose 0.90" x 50'

Item#: 1692577

3TR8N Hydraulic Thermoplastic Hose 0.59" x 50'

Item#: 1692575

3TR18CT Hydraulic Thermoplastic Hose 0.48" x 50'

Item#: 1692548

Met 24mm, Cross-Torque Wrench

Item#: DY89310296

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

9Pc Metric Mini Combination Wrench Set

Item#: DY89250420

Met 24mm, Cross-Torque Wrench

Item#: DY89310296

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

9Pc Metric Mini Combination Wrench Set

Item#: DY89250420

Product Description

• Agency Ratings: SAE 100R7; Non-Conductive SAE J517
• Fittings Certified: 903 Series
• Agency Approvals: ANSI A92.2 for vehicle-mounted devices
• Construction:
– Inner Tube: Polyester core tube
– Reinforcement: Braided synthetic fiber
– Cover: Orange, non-perforated, non-stick polyurethane
• Temperature Range:
– Petroleum-based fluids: –65°F to +212°F (–54°C to +100°C)
– Water-based fluids: –65°F to +140°F (–54°C to +60°C)
• Application Notes:– Less than 50 microamperes leakage when subjected to 75,000 volts/ft. for five minutes– UV- and abrasion-resistant cover– Flexible in low temperatures– Used in electric utility truck systems and other mobile boom equipped vehicles

Technical Specifications

Item#: 20432 03
Manufacturer Model #: 37AL-03003
Type Thermoplastic Hose
Category / Performance Medium Pressure - Non-Conductive
Industry Rating 1 SAE 100R7 NC
Industry Rating 2 ANSI A92.2
Manufacturer Series Number 37AL
Manufacturer Series Name Synflex
Working Pressure 3,000 PSI
Burst Pressure 12,000 PSI
Inner Tube Material Polyester Core Tube
Hose Reinforcement Braided synthetic fiber reinforcement
Hose Cover Material Non-perforated, non-stick polyurethane
Fitting Series 903 Series
Temperature Petroleum based fluids -65F to +212F, Water-based or fire-resistant fluids to 140F
Color Orange
Size 3/16 (-3)
SynFlex Part No. 37AL-03003
UNSPSC #: 40142020
TAA Compliant: No
Weight: 15.0 lb
