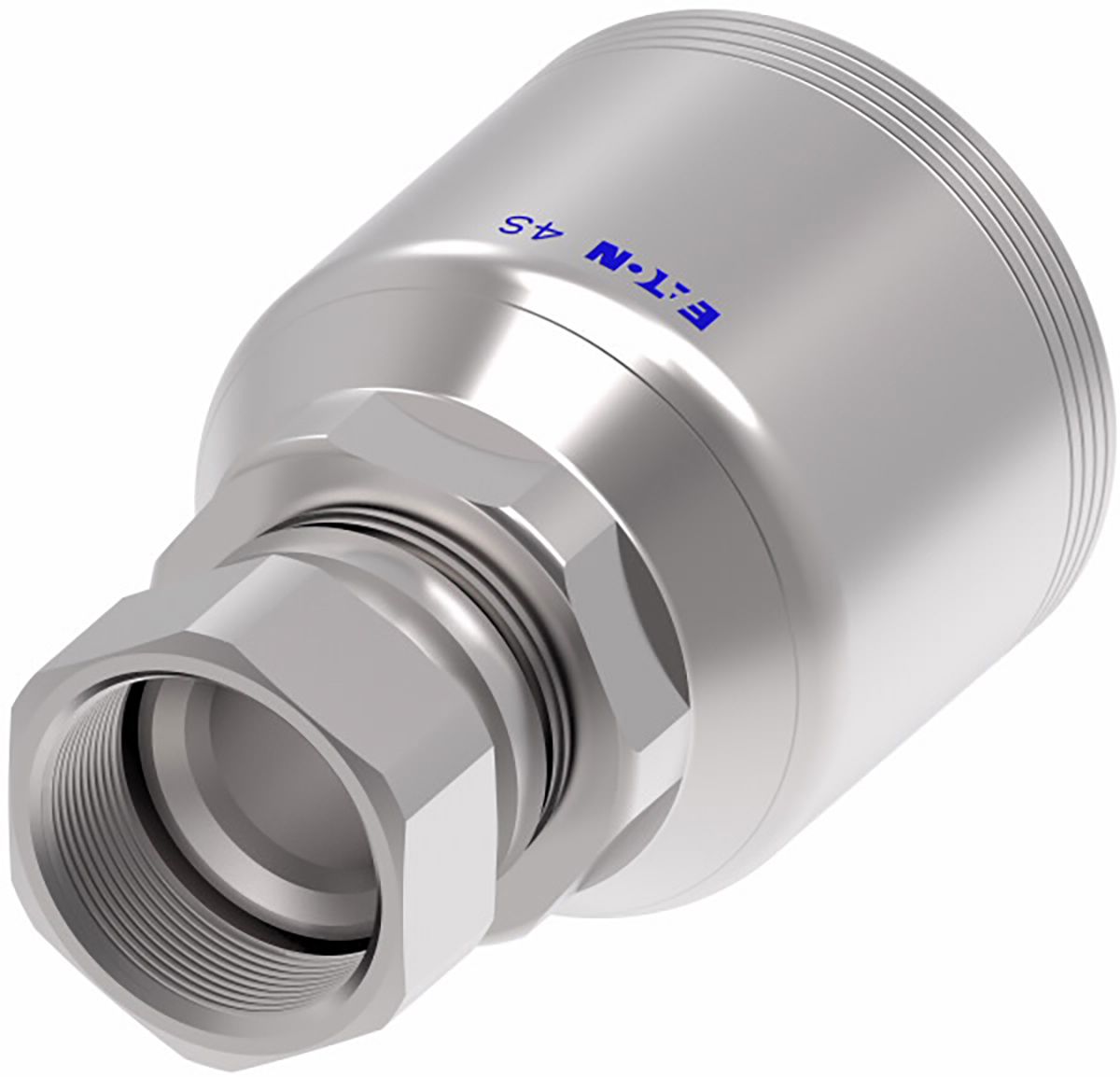

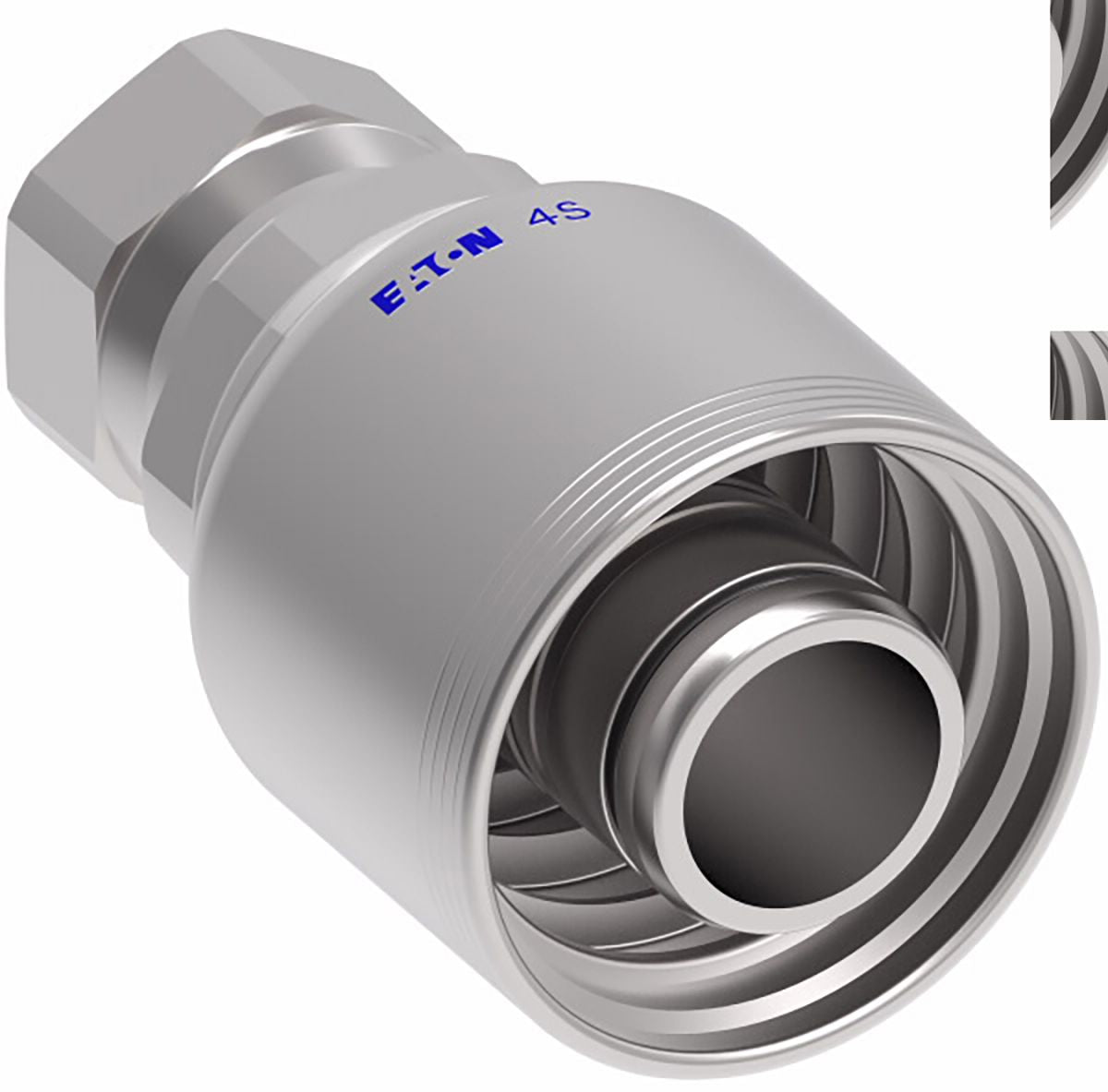

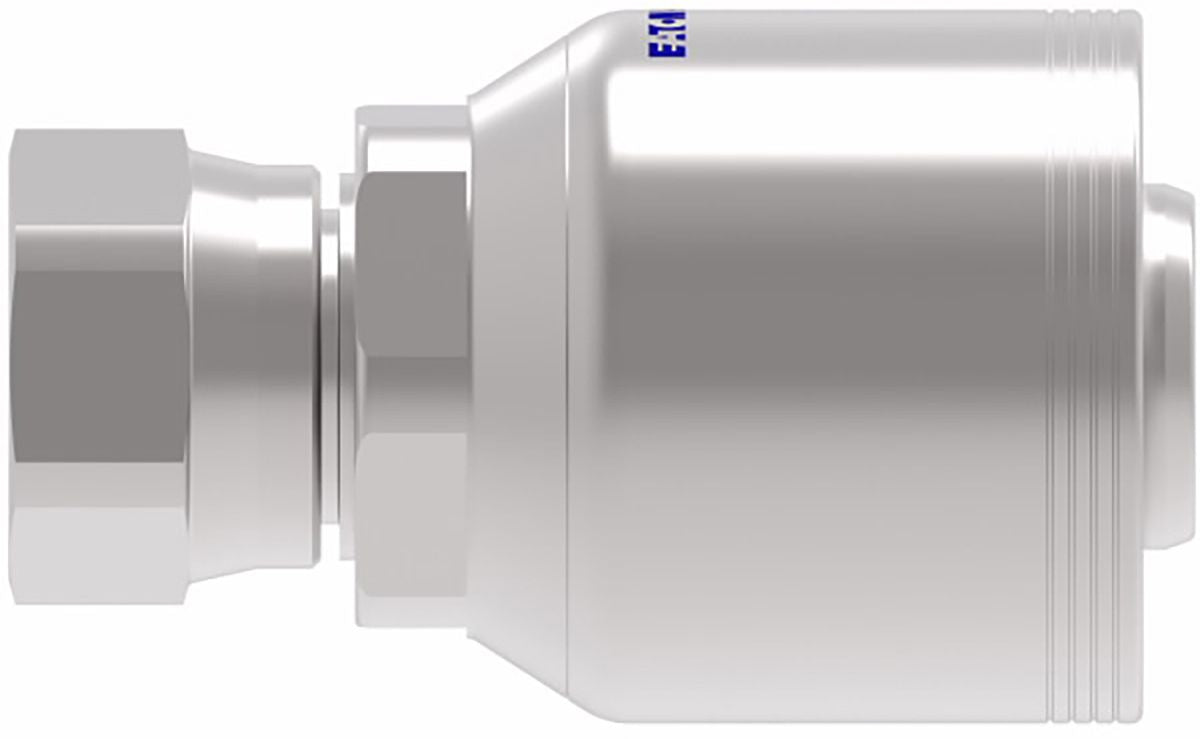

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 1-1/4 (-20) x 1-5/8-12 (-20)
(Pack of
1)
SKU:1543089 Item#: 1543089
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
GlobalSpiral Coupler, O-Ring Face Seal 734723825
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, Ferrule 736251345
$0.00
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 3/4"
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
RYCO RY16 Mini Crimper Crimp Die Set, Crimp Range 0.551-0.630 Inch
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
$0.00
Couldn't load pickup availability
Ergonomic Blow Gun Rubber Tip
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543089 |
|---|---|
| Manufacturer Model #: | 4SA20FJ20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-5/8-12 (-20) |
| Weatherhead No. | 4SA20FJ20 |
| SAE Code | J1176 |
| Hex Size | 2 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.82 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.82 lb |
