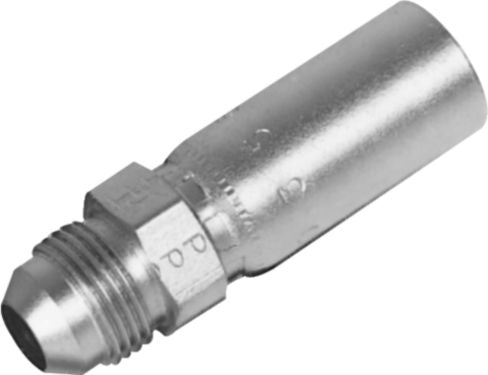

55 Series Male JIC 37° Flare Straight 3/4 (-12)x 1-1/16-12 (-12) Crimp-on End Fitting
(Pack of
5)
SKU:90510 Item#: 90510
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.
Frequently Bought Together
Radiator Grille Nut M4.2-1.41
Item#: 1513544
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Item#: P53958
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Product Description
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.Technical Specifications
| Item#: | 90510 |
|---|---|
| Manufacturer Model #: | 10358-12-12 |
| Manufacturer Series Number | 55 Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Male |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-1/16-12 (-12) |
| O.D. Tube Size | 3/4 |
| Pusher Part Number | 90542 |
| Die Part Number | 90558 |
| Size | (-12)X(-12) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 2.4 lb |
