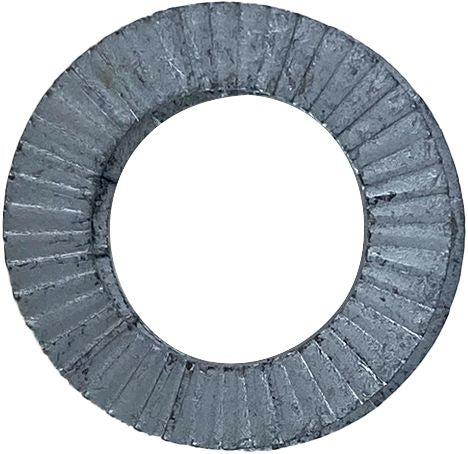

7/16 11mm Standard Anti-Vibration Serated Self Lock Washer
(Pack of
10)
SKU:DY03682500 Item#: DY03682500
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Frequently Bought Together
DIN 125A Flat Washer Grade 140 HV M12
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
$0.00
Couldn't load pickup availability
Lock Washer Alloy Steel 3/4"
$0.00
Couldn't load pickup availability
Lock Washer Self-Locking 316L Stainless Steel 1/4"
$0.00
Couldn't load pickup availability
Lock Washer Self-Locking 316L SS #10 (M5)
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' Black
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 10 AWG 100' Black
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 12 AWG 100' Yellow
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
$0.00
Couldn't load pickup availability
Lock Washer 18-8 Stainless Steel 3/4"
$0.00
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 1/2"
$0.00
Couldn't load pickup availability
Reciprocating Saw Blade 12" 10TPI
$0.00
Couldn't load pickup availability
3" Partsmaster Type R Surface Conditioning Disk-Coarse
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" SS Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Reciprocating Saw Blade 12" 10TPI
$0.00
Couldn't load pickup availability
3" Partsmaster Type R Surface Conditioning Disk-Coarse
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" SS Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03682500 |
|---|---|
| Nominal Size | 7/16" (M11) |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.45 " |
| O.D. | 0.73 " |
| Finish | Delta Protekt® |
| Thickness | 0.10 " |
| Quantity Per Package | 10.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
