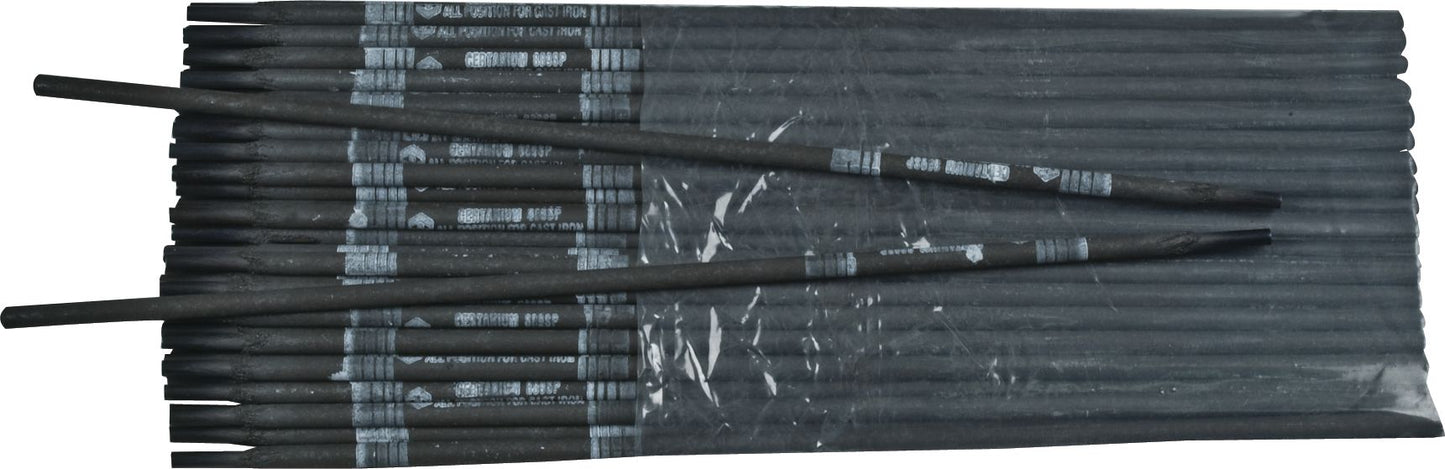

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/16"
(Pack of
10)
All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
High strength welds
Fully machinable
Pass-over-pass welding to save time
All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
Pump and bearing housings
Cylinder blocks and heads

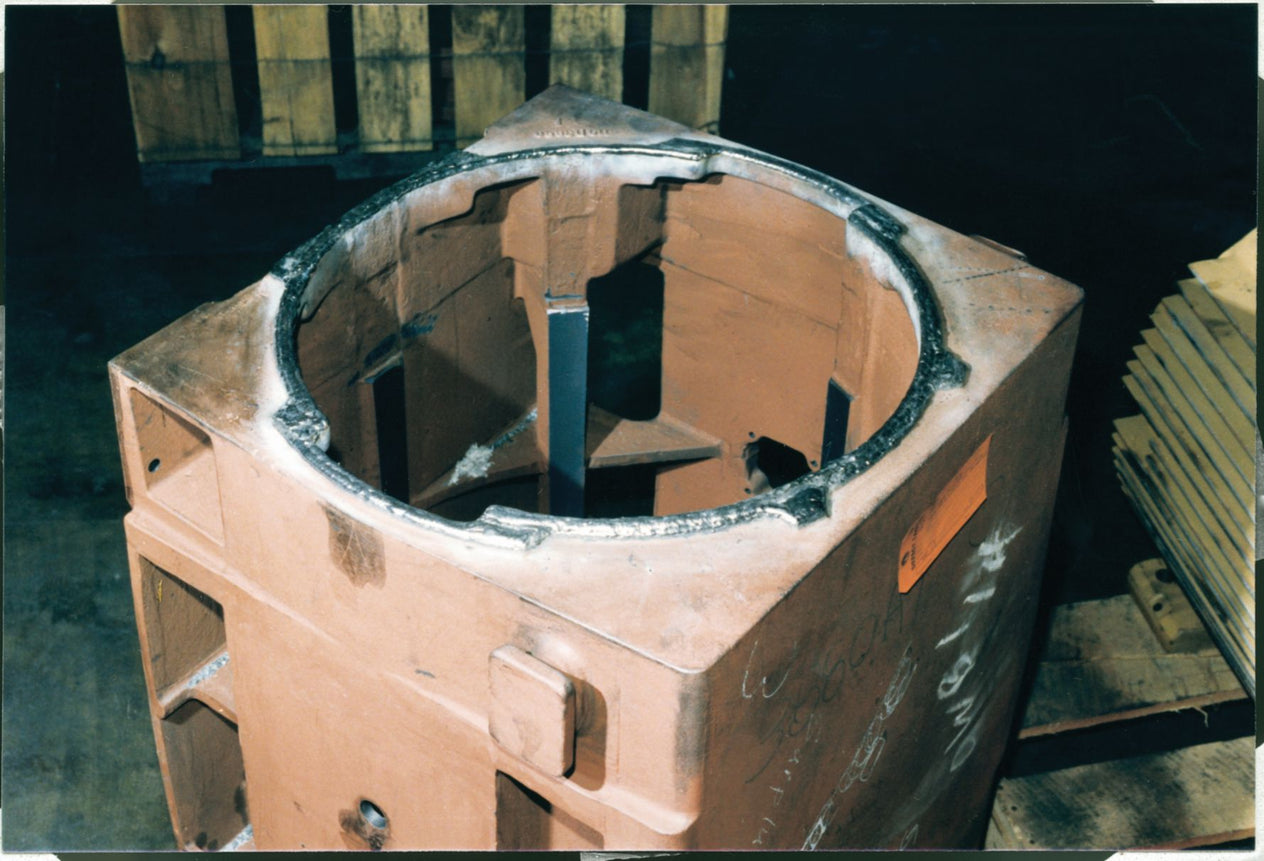

Machine bases

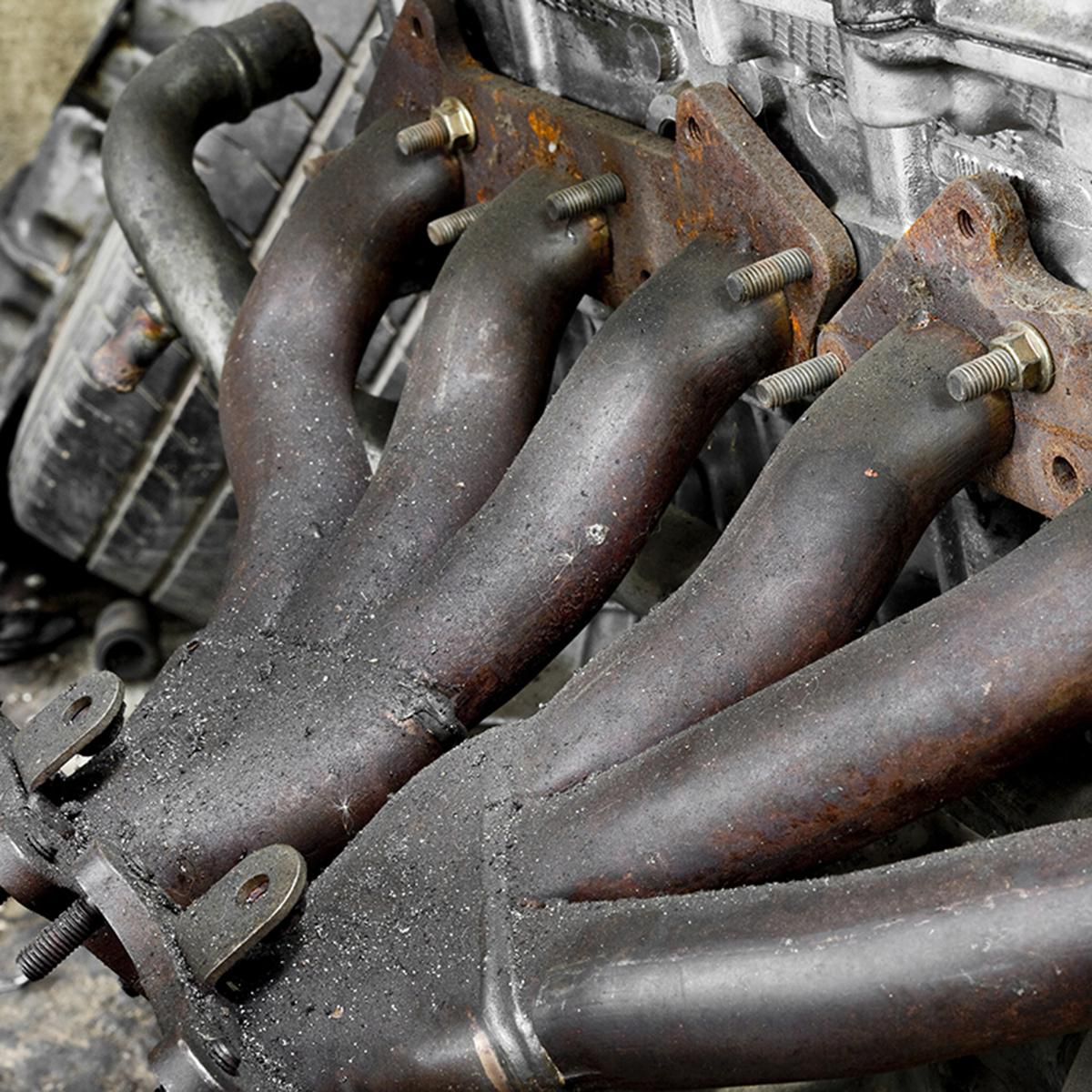

Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° V). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
889 Cast Iron Stick Rod Electrode 5/32"
Couldn't load pickup availability
222 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 3/32X36
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
21 Compartment Small Drawer
Couldn't load pickup availability
Interior Deodorizer 1 Gallon
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Round Soapstone Holder Heavy Duty
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X5X7
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/32"
Couldn't load pickup availability
E71T-11 Mild/Carbon Steel MIG Welding Wire 0.035" 10lb
Couldn't load pickup availability
1/16 Mild Steel Tig Wire
Couldn't load pickup availability
Product Description
All-position welding for any type of weldable cast iron repair and cast iron to steel.Superior Advantages
High strength welds
Fully machinable
Pass-over-pass welding to save time
All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
Pump and bearing housings
Cylinder blocks and heads
Machine bases
Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° V). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Technical Specifications
| Item#: | P12009 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/16 " |
| Tensile Strength | 84,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 180-222 BHN |
| Polarity | DCRP/DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.53 lb |
