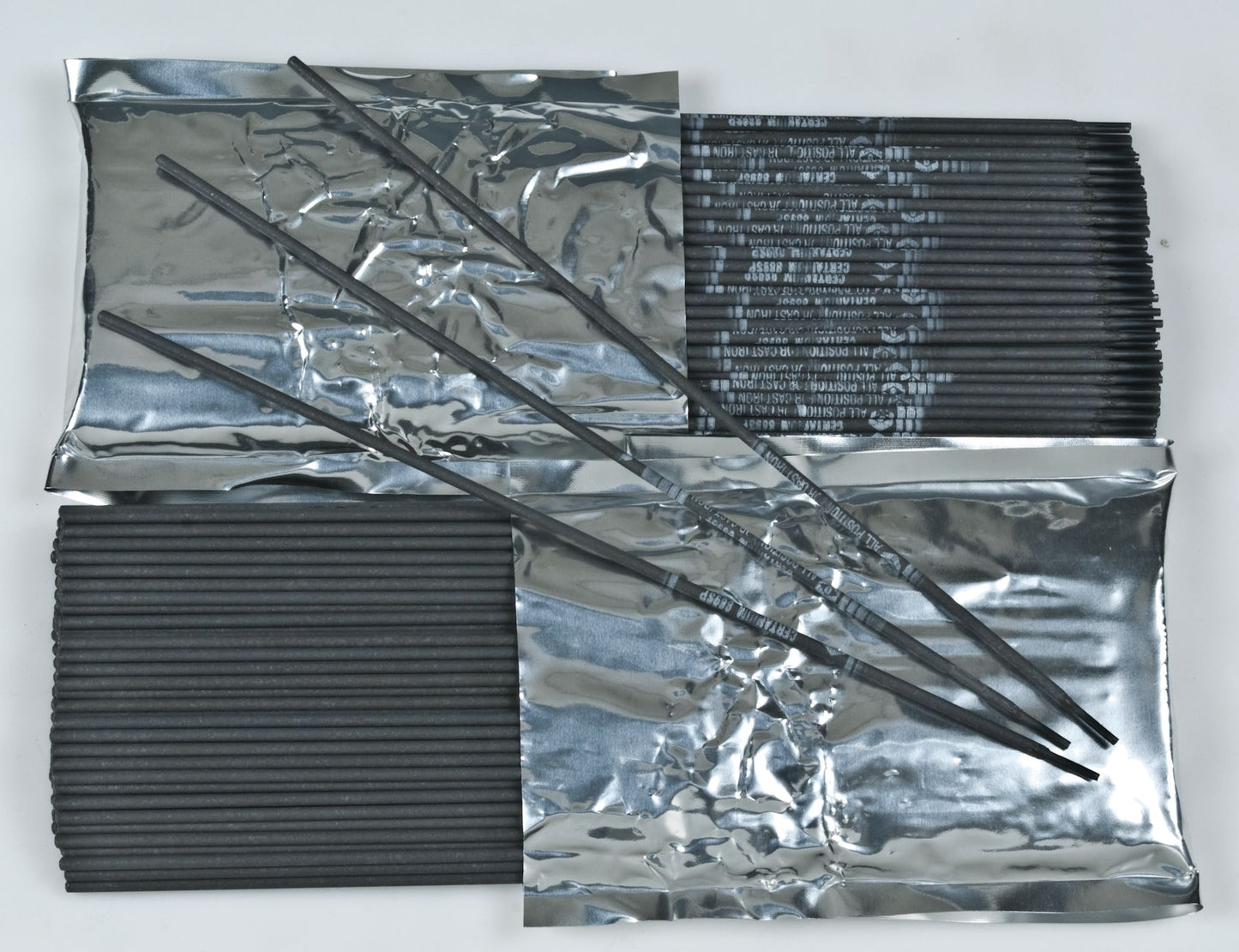

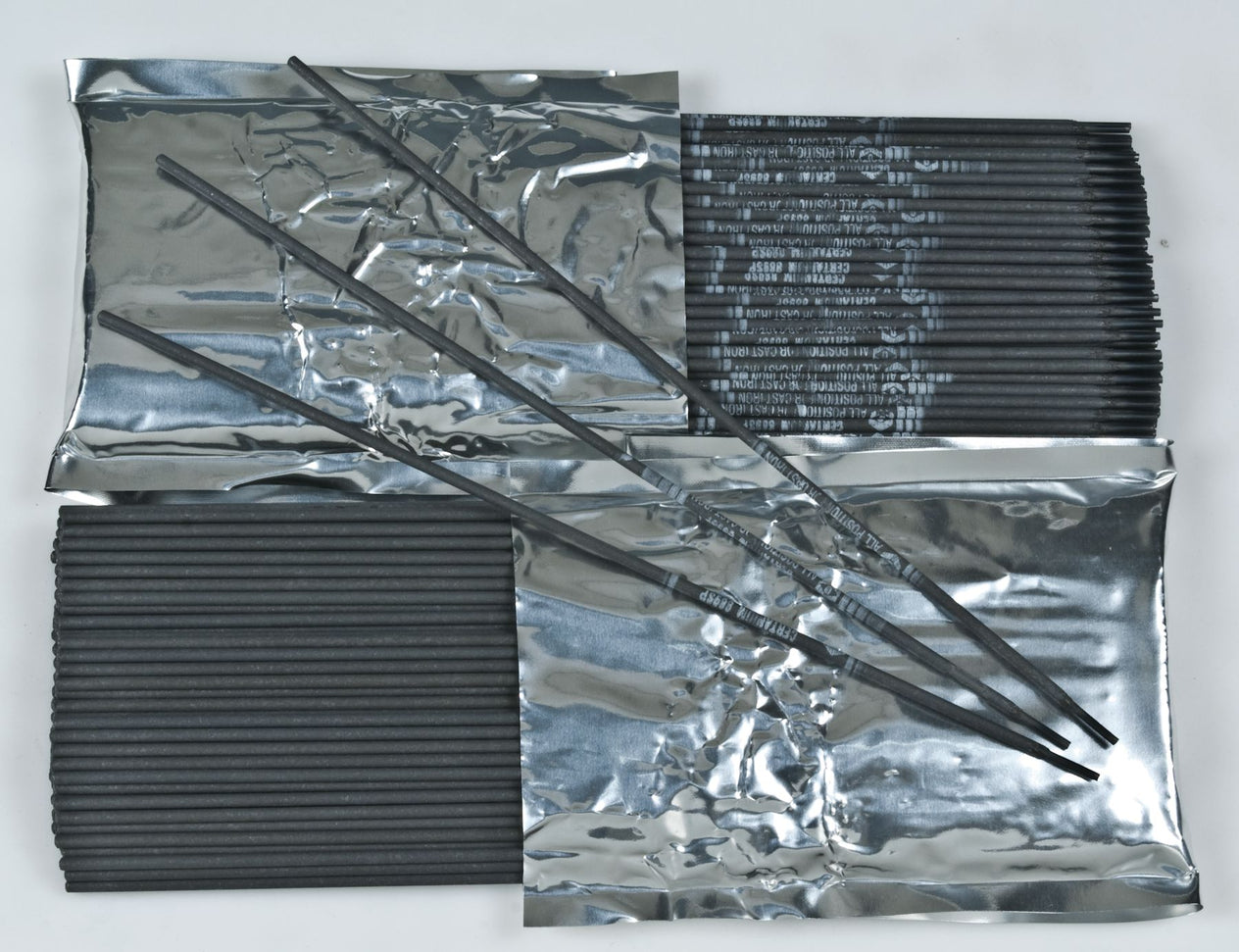

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/32"
(Pack of 10)

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads

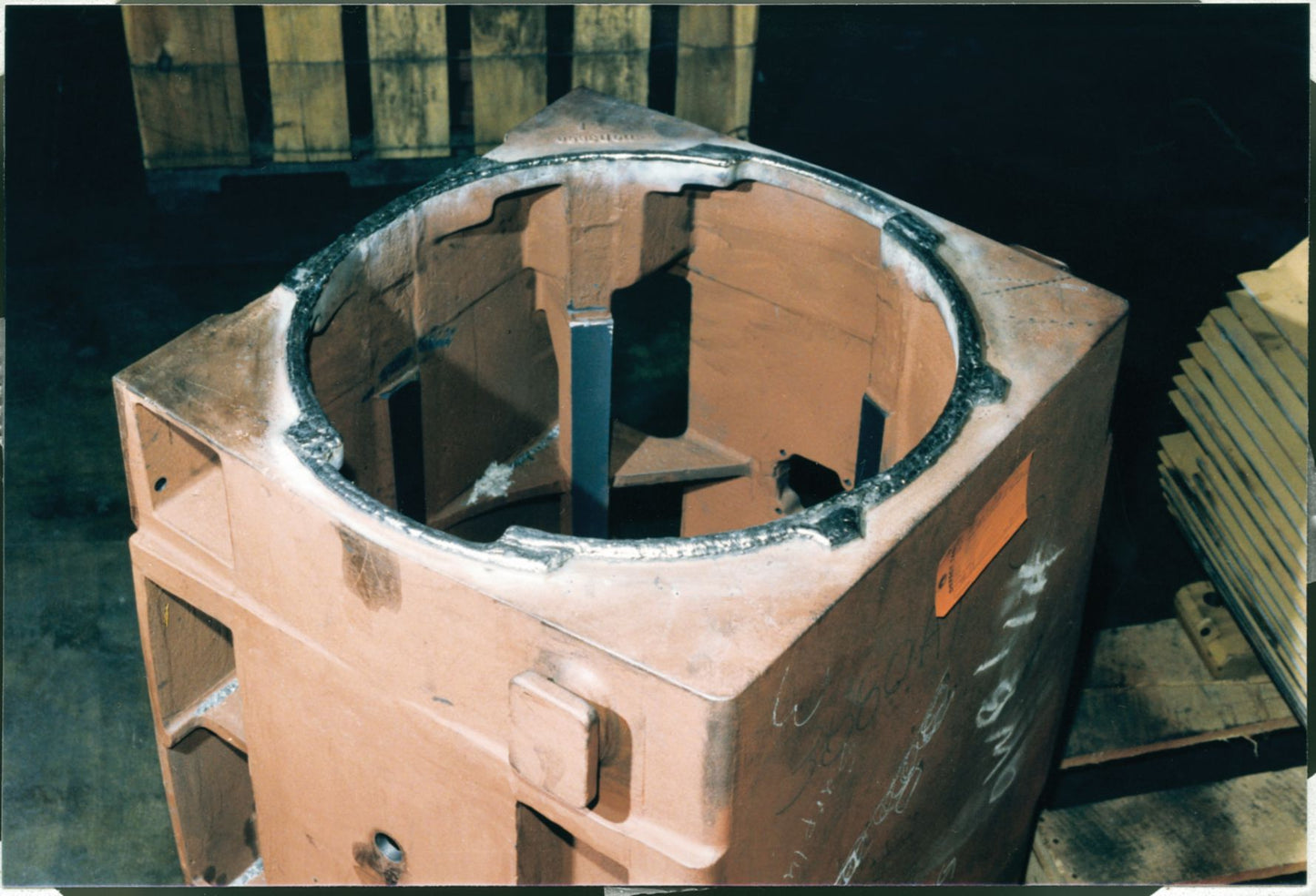

• Machine bases

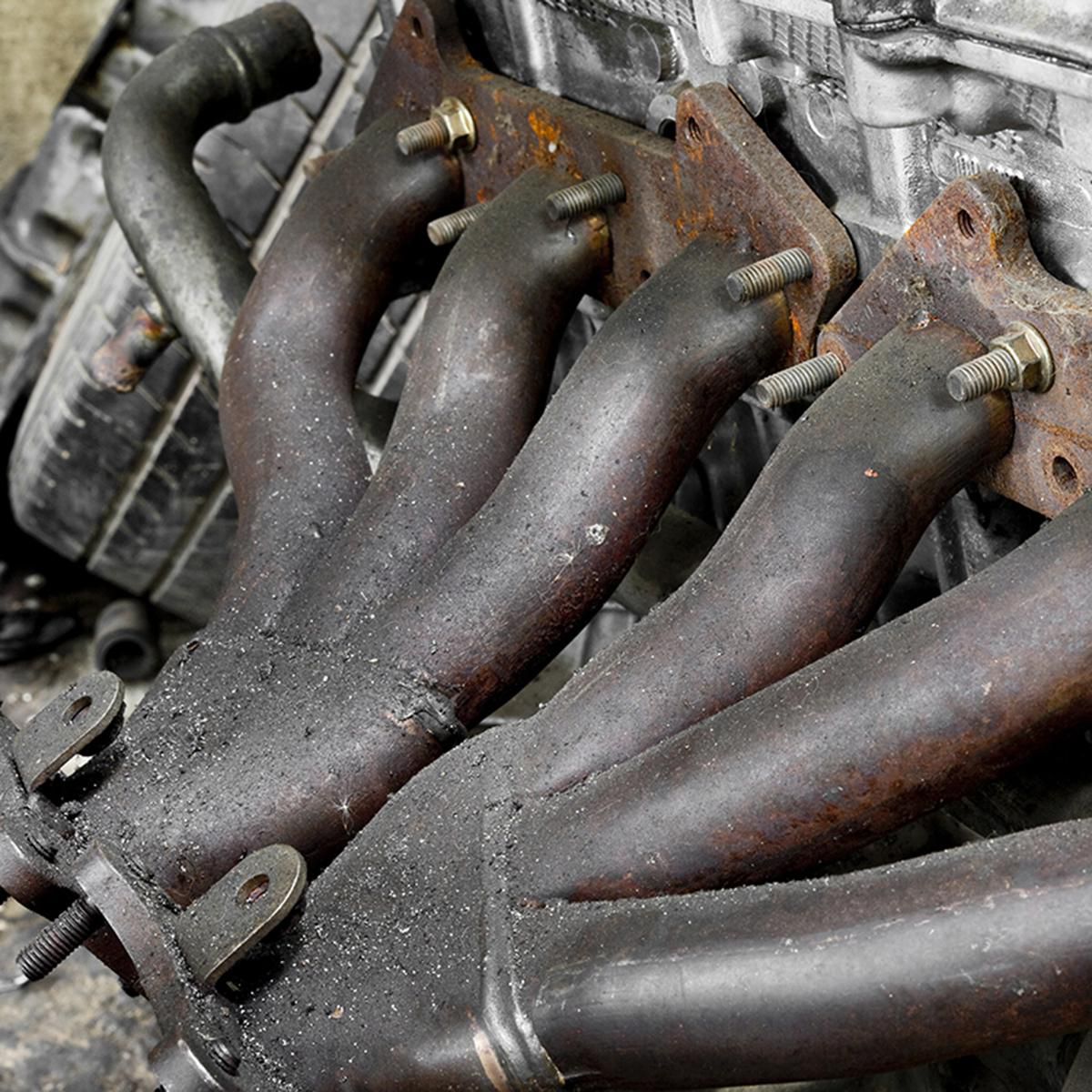

• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Frequently Bought Together

211 Cast Iron Stick Rod Electrode 5/32"

131 Cast-Weld Special Purpose Cast Iron Electrode 1/8

Item#: EG13140000

889 Cast Iron Stick Rod Electrode 1/8"

Front Fender Liner Push-Type Retainer Nylon 20mm

Shield Push-Type Retainer with Metal Insert

Metric Indented Hex Head Bolt with 17mm Washer

3/8 on 3/8 Dimension I Double Pass Overlay

Industrial Graphite Rod 1 x 12"

1/4 on 1/4 Dimension I Double Pass Overlay

8-7500 Plasma Cutting Shield Cup

Oxy-Therm Striker Plate

192053 Plasma Cutting Drag Shield

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	P12001
Welding Process	Stick
Type	Flux Coated
Diameter	3/32 "
Tensile Strength	84,000 PSI
Base Metal	Cast Iron
Hardness	180-222 BHN
Polarity	DCRP/DCSP/AC
Ford Tox Number	019982
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	10.0 lb

Product Restrictions

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
