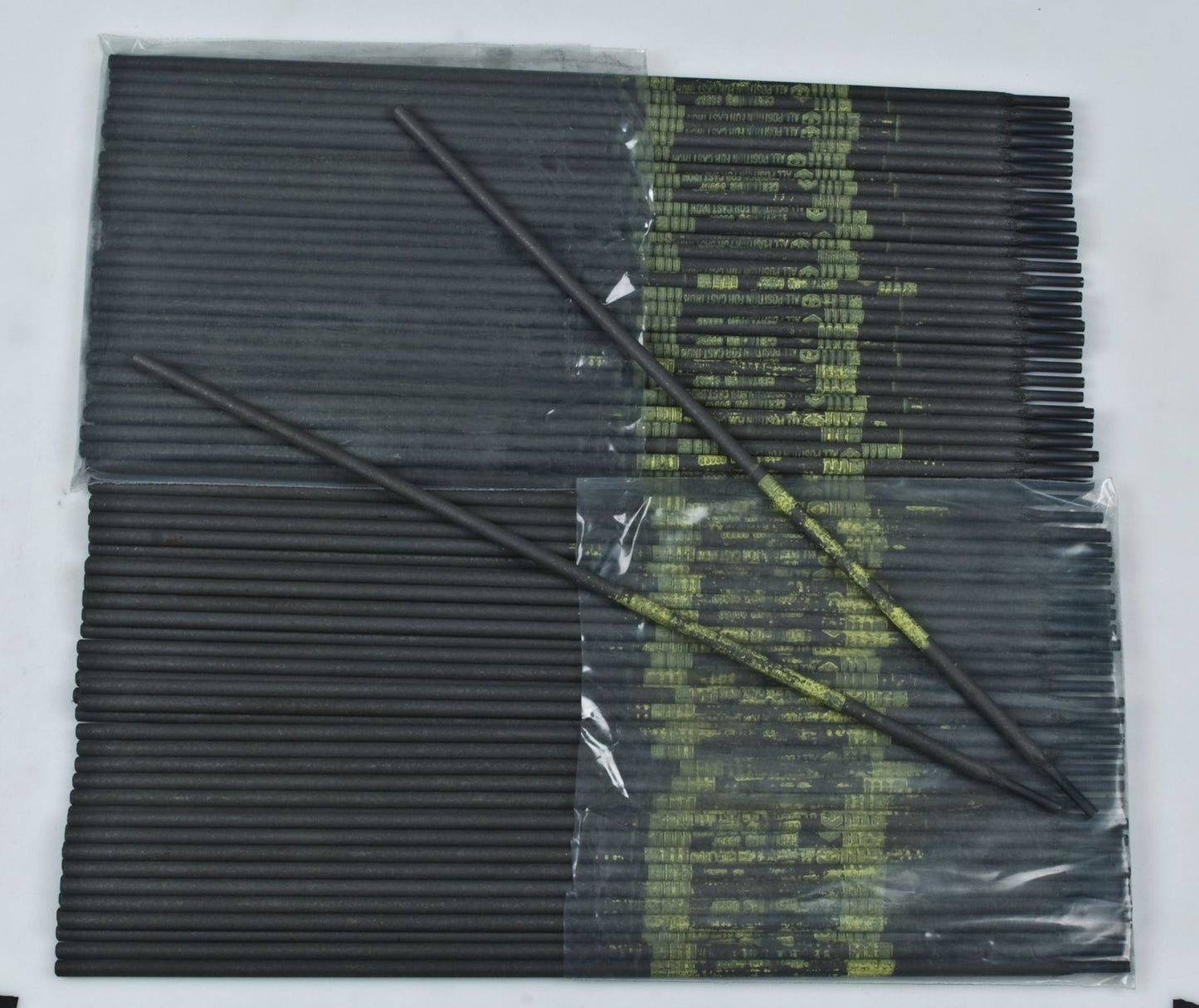

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 5/32"
(Pack of
10)
SKU:P12006 Item#: P12006
All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together

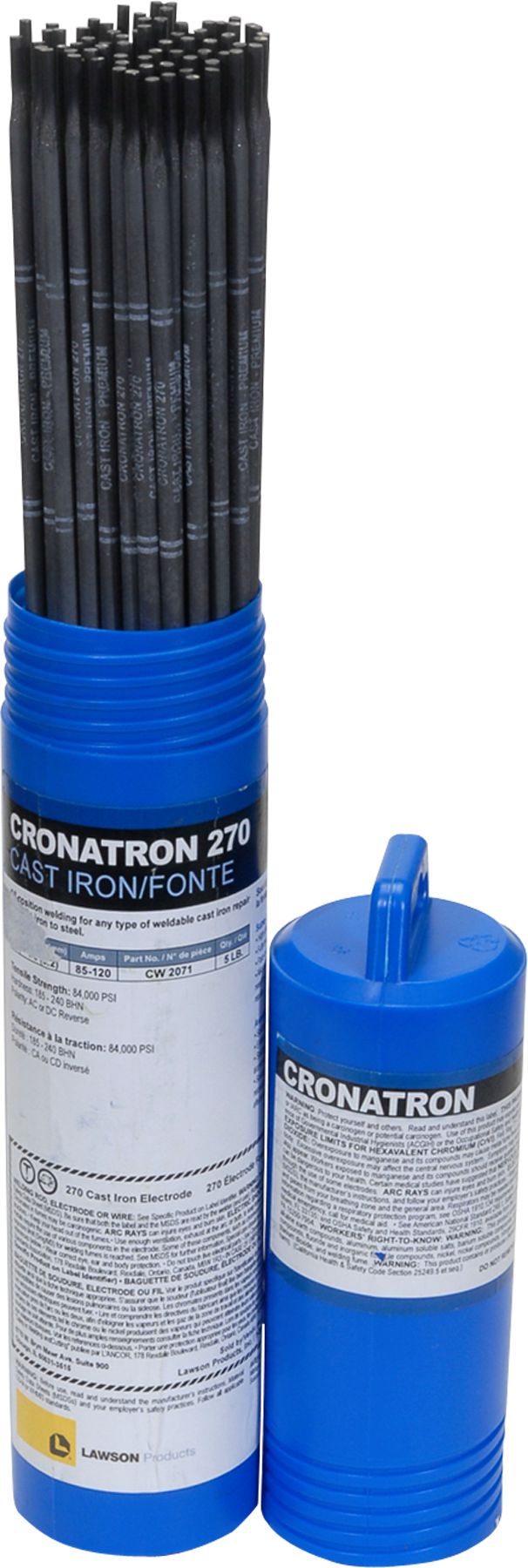

270 Cast Iron Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability

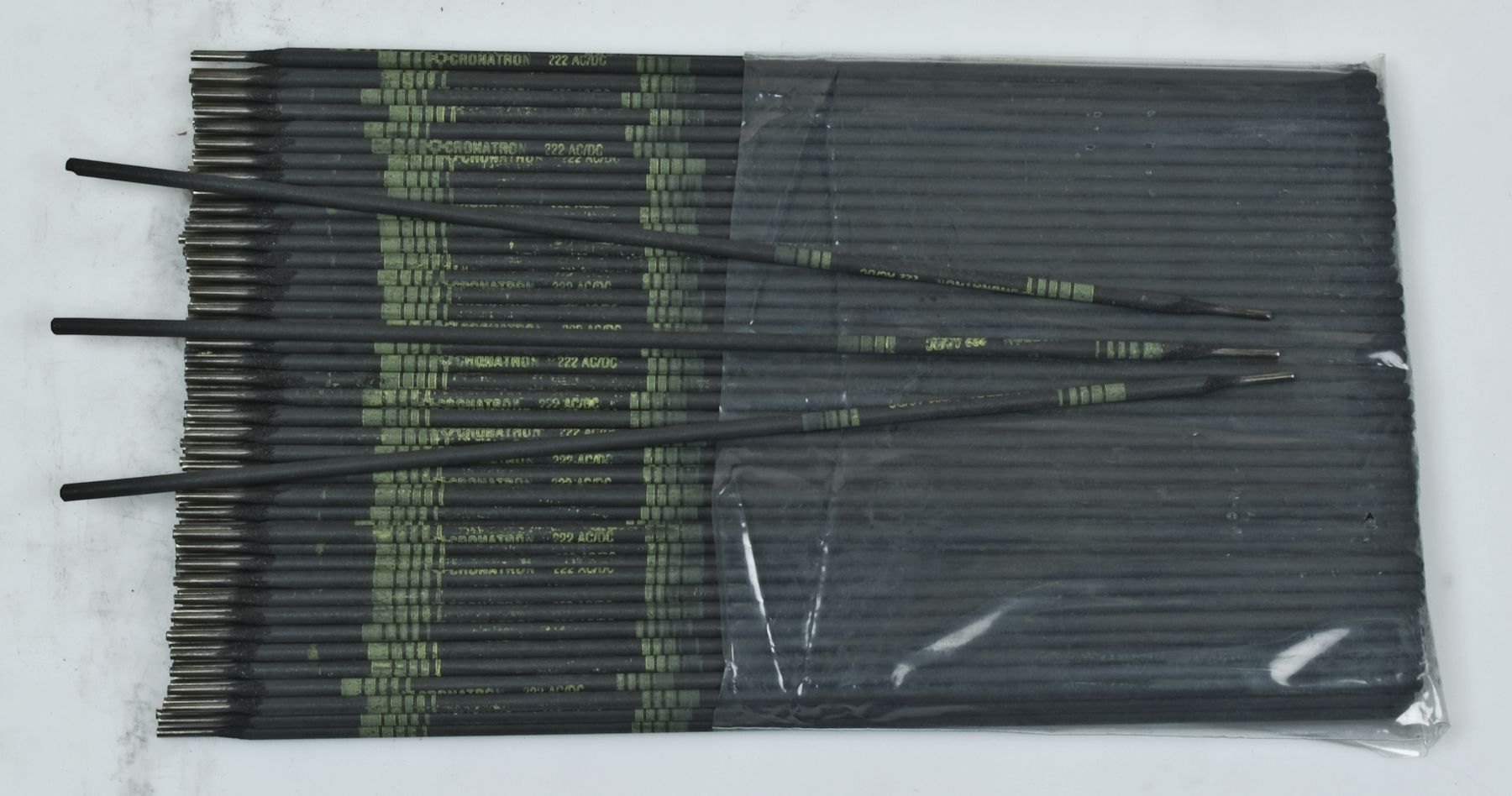

222 Cast Iron Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
131 Cast-Weld Special Purpose Cast Iron Electrode 3/16
$0.00
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Gray
$0.00
Couldn't load pickup availability
Ceramic Detail Spray - RTU
$0.00
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/16 x 1" x 30'
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
E71T-11 Mild/Carbon Steel MIG Welding Wire 0.035" 10lb
$0.00
Couldn't load pickup availability
1/16 Mild Steel Tig Wire
$0.00
Couldn't load pickup availability
Product Description
All-position welding for any type of weldable cast iron repair and cast iron to steel.Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Technical Specifications
| Item#: | P12006 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 84,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 180-222 BHN |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.0 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
