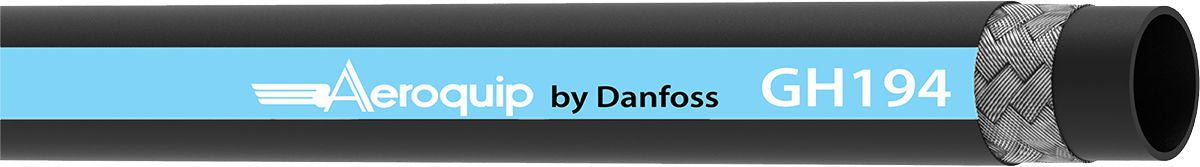

Aeroquip GH194 Hydraulic Hose, 1 Ply Braid, 1-1/2" ID, 1.50" OD, 50' Length, 724 PSI, SAE 100R1
(Pack of
50)
SKU:1638944 Item#: 1638944
• Agency Ratings: SAE 100R1 Type S and EN853 1SN
• Fittings Certified: 1A, 1SA Series
• Agency Approval: MSHA, DNV
• Construction:
– Inner Tube: AQP Synthetic Rubber
– Reinforcement: One steel braid
– Cover: Elastomer
• Operating Temperature Range: –40°F to +302°F (–40°C to +150°C)
• Application Notes: Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids
Frequently Bought Together
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.43" x 50'
$0.00
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.75" x 50'
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
$0.00
Couldn't load pickup availability
Spinning Handmaster Driver Set 5Pc Set
$0.00
Couldn't load pickup availability
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 300 Foot
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R1 Type S and EN853 1SN• Fittings Certified: 1A, 1SA Series
• Agency Approval: MSHA, DNV
• Construction:
– Inner Tube: AQP Synthetic Rubber
– Reinforcement: One steel braid
– Cover: Elastomer
• Operating Temperature Range: –40°F to +302°F (–40°C to +150°C)
• Application Notes: Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids
Technical Specifications
| Item#: | 1638944 |
|---|---|
| Industrial / Hydraulic | Industrial/Hydraulic |
| Type | Rubber - Steel Braided |
| Industry Rating 1 | SAE 100R1 Type S |
| Industry Rating 2 | EN853 1SN |
| Industry Rating | DNV, MSHA Approved |
| Manufacturer Series Number | GH194 |
| Manufacturer Series Name | Aeroquip |
| I.D. | 1-1/2 (-24) " |
| Hose I.D. | 1.50 " |
| Hose O.D. | 2.05 " |
| Working Pressure | 725 PSI |
| Burst Pressure | 2,900 PSI |
| Fitting Series | 1A, 1SA |
| Bend Radius | 19.69 " |
| Inner Tube Material | AQP Synthetic Rubber |
| Hose Reinforcement | 1 wire braid |
| Hose Cover Material | Elastomer |
| Minimum Temperature | -40 °F |
| Maximum Temperature | 302 °F |
| Color | Blue |
| Length | 50 ft |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 52.0 lb |
