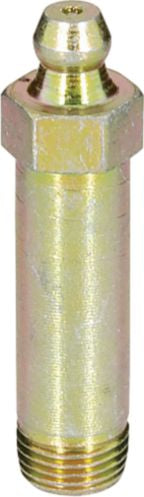

Ball Check Grease Fitting, Drive, Straight, Low Carbon Steel, 5/16" Thread, 9/16" Length
(Pack of
25)
• Ball in tip of fitting keeps out dirt and foreign matter
• Enlarged inner passage admits more lubricant and helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – all threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Accepts all standard makes of hydraulic couplers
Drive type grease fittings are designed for fast production line installation in untapped holes to avoid thread tapping costs. The hole size and shank dimensions are for reference use only. Test applications should be conducted to determine the correct hole size, which varies depending on the type and hardness of the metal. Drive type grease fittings have a serrated shank, which facilitates the substitution of damaged grease fittings in old or oversize holes. Although they grip securely, they are recommended only for low and medium pressures.
• Universal application – Industrial motive equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
DOT Compression Elbow Male 45° Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Elbow Male 45° Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Hose Clamp 301 SS 1/2 to 29-32"
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Grease Filler Pump with Universal Loader Adaptors
Couldn't load pickup availability
Hand Operated Bearing Packer
Couldn't load pickup availability
Fluid Transfer Gun 16 oz
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Product Description
• Ball in tip of fitting keeps out dirt and foreign matter• Enlarged inner passage admits more lubricant and helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – all threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Accepts all standard makes of hydraulic couplers
Drive type grease fittings are designed for fast production line installation in untapped holes to avoid thread tapping costs. The hole size and shank dimensions are for reference use only. Test applications should be conducted to determine the correct hole size, which varies depending on the type and hardness of the metal. Drive type grease fittings have a serrated shank, which facilitates the substitution of damaged grease fittings in old or oversize holes. Although they grip securely, they are recommended only for low and medium pressures.
• Universal application – Industrial motive equipment
Technical Specifications
| Item#: | 6210 |
|---|---|
| Category | Grease Fittings |
| Fitting Type | Ball Check Type |
| Group | Drive |
| Fitting Angle | Straight |
| Fitting Description | Straight |
| Length | 9/16 " |
| Size | 5/16 " |
| Thread Type | 5/16 " |
| Material | 12L14 low carbon steel |
| Plating | Electroplated yellow zinc dichromate |
| UNSPSC #: | 40141736 |
| TAA Compliant: | No |
| Weight: | 0.23 lb |
