Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, 1/4-20, 0.027 to 0.15" Grip, 0.531" Hole
(Pack of
25)
SKU:1405573 Item#: 1405573
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

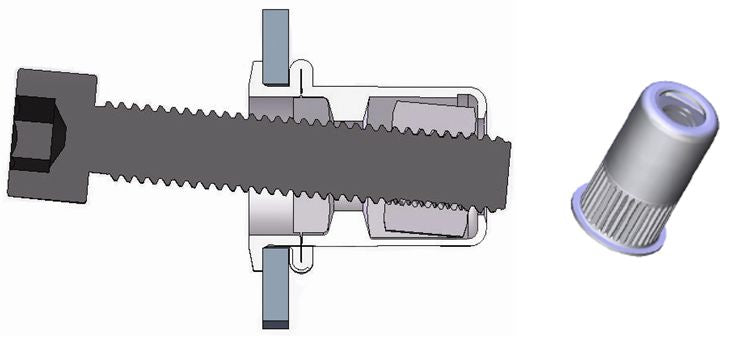

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float Short #10-32
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float #10-32
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 1/4-20
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Red
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Black
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' Black
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-16
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M8-1.25
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
$0.00
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405573 |
|---|---|
| Diameter | 1/4 " |
| Grip Range | .027 - .150 " |
| Length | 0.819 " |
| Thread Pitch | 20 |
| Hole Size | 0.531 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | 1/4-20 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
