Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Large Flange, 1/4-20, 0.027 to 0.15" Grip, 0.531" Hole
(Pack of
25)
SKU:1405642 Item#: 1405642
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

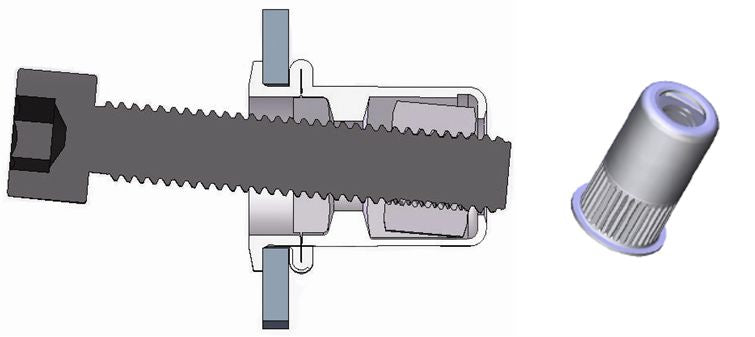

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float #8-32
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float Short #10-24
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 5/16-18
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Blue
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Black
$0.00
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 2" x 30'
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M4-0.7
$0.00
Couldn't load pickup availability
Standard Threaded Insert 1/4-20
$0.00
Couldn't load pickup availability
Blind Rivet Nut Prebulbed Slotted Body Series
$0.00
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405642 |
|---|---|
| Diameter | 1/4 " |
| Grip Range | .027 - .150 " |
| Length | 0.819 " |
| Thread Pitch | 20 |
| Hole Size | 0.531 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | 1/4-20 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
