Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, #8-32, 0.027 to 0.13" Grip, 0.391" Hole
(Pack of
25)
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

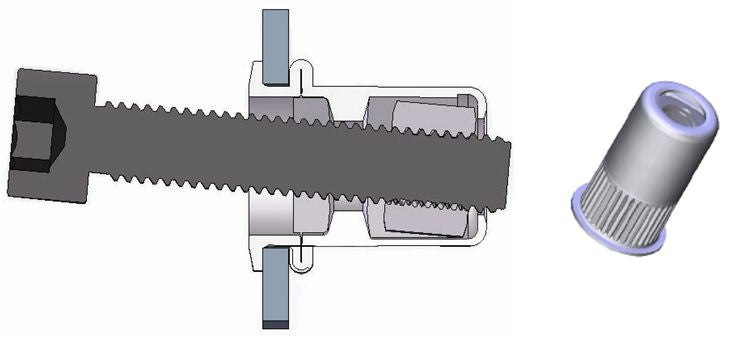

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M10-1.5
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M5-.8
Couldn't load pickup availability
Blind Rivet Nut Prebulbed Slotted Body Series
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 1/4-20
Couldn't load pickup availability
Green Boom Oil-Only Mat 15” x 20” 100 ct
Couldn't load pickup availability
Oily Large Pack
Couldn't load pickup availability
Green Boom Oil-Only Pillow 10" x 10"
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Threaded Insert Installation Tool
Couldn't load pickup availability
Conversion Kit #6-32
Couldn't load pickup availability
Conversion Kit #8-32
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405676 |
|---|---|
| Diameter | #8 |
| Grip Range | 0.027 - 0.130 " |
| Length | 0.720 " |
| Thread Pitch | 32 |
| Hole Size | 0.391 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #8-32 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
