Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, M5-0.8, 0.7 to 3.8mm Grip, 10mm Hole
(Pack of
25)
SKU:1405852 Item#: 1405852
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

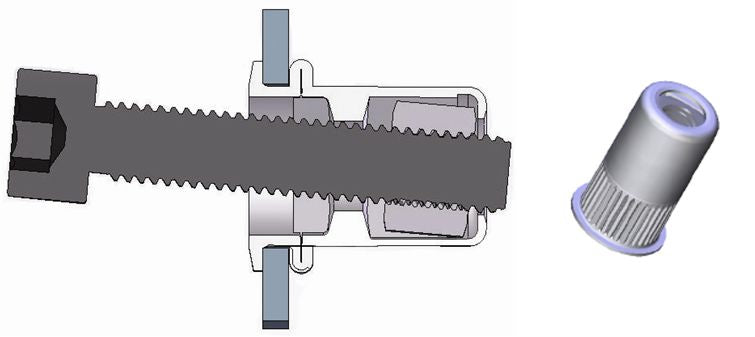

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm
Couldn't load pickup availability
Hex Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 3/8-16
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float 1/4-20
Couldn't load pickup availability
ARO 210 Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Rivet Nut Hand Tool 5/16-24
Couldn't load pickup availability
Replacement Head Set for FLEX-5 Tool 3/8-16
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool M8
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405852 |
|---|---|
| Diameter | M5 |
| Grip Range | 0.7- 3.8 mm |
| Length | 18.28 mm |
| Thread Pitch | .8 mm |
| Hole Size | 10 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | M5-.8 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
