Blind Rivet Nut Insert, Riv-Float Short, Steel, Zinc Clear Finish, Knurled, Large Flange, #8-32, 0.02 to 0.1" Grip, 0.433" Hole
(Pack of
5)
SKU:1405552 Item#: 1405552
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

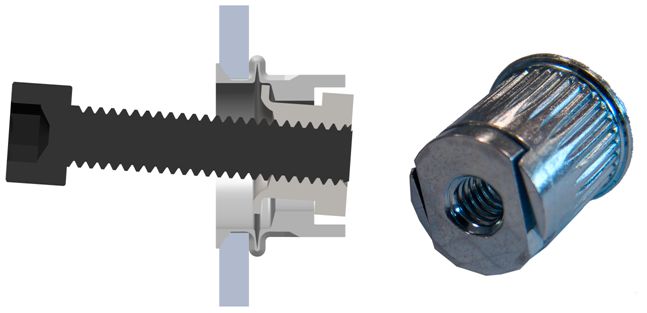

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 45mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 45mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float #10-32
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head #10-32
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head #10-32
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 3/8" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 3/8" Body x 1/4" MNPT
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Pneumatic Rivet Nut Installation Tool Right Angle
Couldn't load pickup availability
Pneumatic Rivet Nut Installation Tool In-Line
Couldn't load pickup availability
Rivet Nut Hand Tool 5mm
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405552 |
|---|---|
| Diameter | #8 |
| Grip Range | .020 - .100 " |
| Length | 0.435 " |
| Thread Pitch | 32 |
| Hole Size | 0.433 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float Short |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #8-32 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
