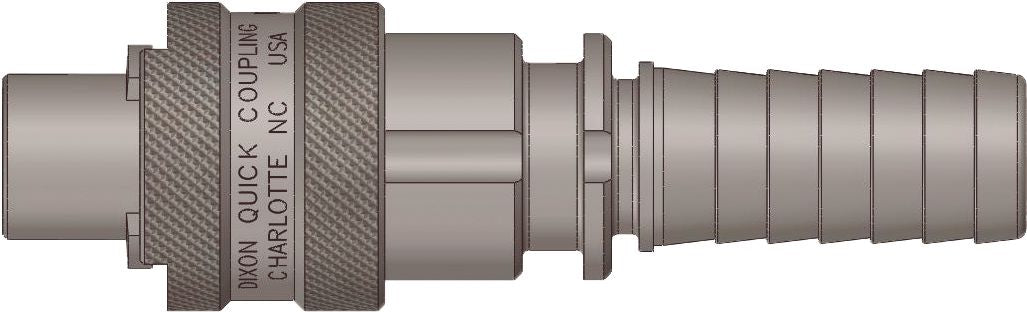

51000 Series Bowes Industrial Quick Disconnect Nipple, Steel, 500PSI, Barb, 1/2" Body Size, 3/8" Hose ID
(Pack of
1)
SKU:20915 Item#: 20915
Dual guide sleeve tabs will ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large bore air tools. Used in underground boring, power utilities and equipment rentals.
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories
• Locking Mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Air Hose Ferrule Brass 21/32"
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
Dual guide sleeve tabs will ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large bore air tools. Used in underground boring, power utilities and equipment rentals.• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories
• Locking Mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
Technical Specifications
| Item#: | 20915 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Nipple |
| Style | Bowes |
| Body Size | 1/2 " |
| Thread Style | Barb |
| Working Pressure | 500 PSI |
| Material | Steel |
| Hose I.D. | 3/8 " |
| Length | 4.36 " |
| Seal Material | Nitrile (Buna-N) |
| Standards | MIL-C-3486; A-A-50431A |
| Dixon Number | N4S3 |
| Hose Barb Size | 3/8 " |
| Locking Mechanism | Latch Tabs |
| Flow | 204 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
