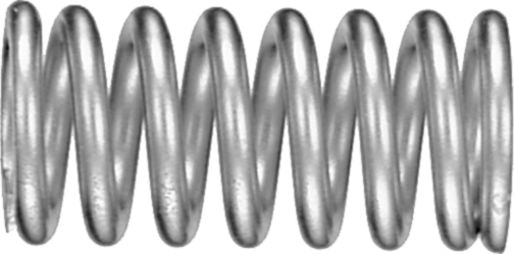

Compression Spring 1/2 x 1-5/8"
(Pack of
2.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Marker Pen Green
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Paint Marker Green
Couldn't load pickup availability
Marker Pen Green
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Marker Pen Green
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Paint Marker Green
Couldn't load pickup availability
Compression Spring 5/16 x 12"
Couldn't load pickup availability
Compression and Extension Spring Kit 76Pcs
Couldn't load pickup availability
Compression Spring 7/32 x 2"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89614 |
|---|---|
| Type | Compression Spring |
| O.D. | 25/32 " |
| Length | 1-5/8 " |
| I.D. | 1/2 " |
| Wire Diameter | 0.120 " |
| Wire Gauge | 11 |
| Number of Coils | 8 |
| Rate | 171 lb./in. |
| Maximum Work Load | 90 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
