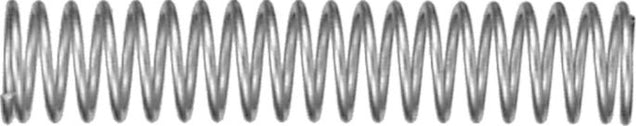

Compression Spring, Steel, 19 Wire Gauge, 17/64" ID, 11/32" OD, 1" Length, 10 Coils, 11lbs Maximum Work Load
(Pack of 20)

SKU:89564 Item#: 89564

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 13/32 x 3"

Compression Spring 5/16 x 2"

Compression Spring 7/32 x 1-1/4"

Bullseye #12 Bottle with Trigger Sprayer 22fl.oz

Universal Single-Ply Medium Weight Sorbent Pads

Service Dispatch Number 000 to 999

Acid Brush 1/2 x 5-3/4"

Premium Polypropylene Packaging Tape 48mm x 50 mm

Automotive Refinishing Tape 1-1/2" x 60 Yards

Molding Clip with Sealer Nylon White 11.5 x 21

Push-Type Retainer Nylon 20mm

Front Rear Bumper Specialty Rivet 3.2mm

180ml Spray Cup System - Water-Based - 50 Liners, 50 Lids, 20 Stoppers, 1 Hard Cup, 1 Collar

180ml Spray Cup System - Solvent-Based - 50 Liners, 50 Lids, 20 Stoppers, 1 Hard Cup, 1 Collar

Service Dispatch Number 3000 to 3999

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89564
Type	Compression Spring
O.D.	11/32 "
Length	1 "
I.D.	17/64 "
Wire Diameter	0.041 "
Wire Gauge	19
Number of Coils	10
Rate	18 lb./in.
Maximum Work Load	11 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.09 lb
