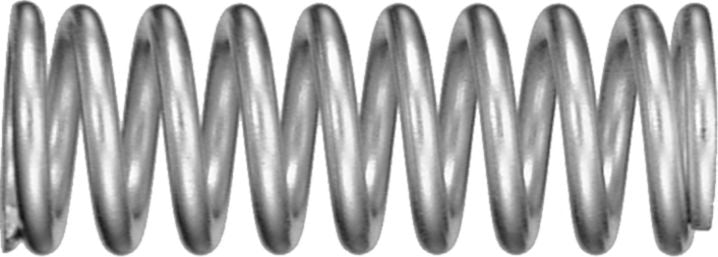

Compression Spring, Steel, 11 Wire Gauge, 9/16" ID, 13/16" OD, 2-1/4" Length, 10 Coils, 90lbs Maximum Work Load
(Pack of 2)

SKU:89620 Item#: 89620

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 1/2 x 1-3/8"

Compression Spring 5/8 x 2"

Compression Spring 3/8 x 2-3/4"

Anti-Rattle/Squeak BRS Tape 30mm x 10'

Adhesive-Back Shim Stock 1/8 x 5/8" x 50'

Butyl Windshield Tape 3/8" x 15'

Glossy Back Paper Floor Mat, 17" x 22"

Premium Nitrile Gloves, Black, 6 Mil, Medium, 100/Box

Wyper Super Prep Towel 9 x 14"

Shield Push-Type Retainer with Metal Insert

Rocker Panel Molding Clip Nylon White 12 x 20mm

Front/Rear Bumper Push-Type Retainer Nylon 20mm

Adhesive-Back Shim Stock 1/8 x 5/8" x 50'

Butyl Windshield Tape 3/8" x 15'

Humpback All-in-One Pressure Washer System 3,000 PSI

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89620
Type	Compression Spring
O.D.	13/16 "
Length	2-1/4 "
I.D.	9/16 "
Wire Diameter	0.120 "
Wire Gauge	11
Number of Coils	10
Rate	111 lb./in.
Maximum Work Load	90 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.14 lb
