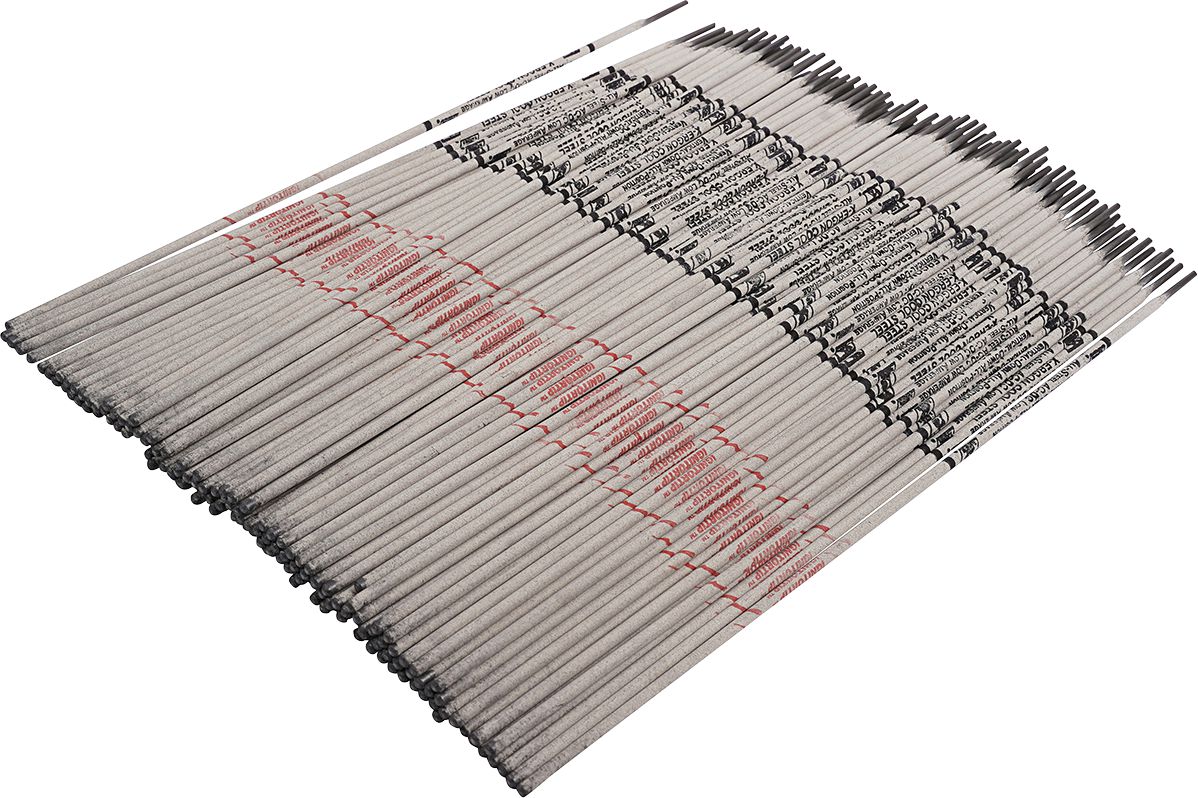

Cool Steel All Position Vertical Down Elongation 30% Polarity Dcep/Ac Tensile Up To 150000 Will Work Harden To 37Rc Ignitor Tip
(Pack of
5)
SKU:EG00550000 Item#: EG00550000
A multi-steel electrode with a fast-freeze coating to give the welder unparalleled control in the vertical down position.
• Versatile – Welds all weldable grades of steels: Cast steel, mild steel, stainless steel, manganese steel, high-strength steel, tool steel, spring steel or any combination of these
• Minimum heat requirements – runs at low amps to reduce distortion
• Designed for all-position welding — even vertical down
• IGNITOR TIP™ for instant strike
• Superior strength and crack resistance
• Tensile strength:
– As deposited: 104,000 PSI/717 MPa
– Work hardened: 150,000 PSI/1034 MPa
• Hardness: – As deposited: 97 Rb
• Work Hardened: 37 Rc
• Elongation: 30%
• Heat Resistance: Good
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Chemical Resistance: Very good
• Impact Strength: 100 ft.-lbs. @ -75°F/-59°C
• Machinablilty: Excellent
• Current: DC or AC
Frequently Bought Together
3333 Dissimilar Steel Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
$0.00
Couldn't load pickup availability
100 Blue Lightning Tough Duplex Alloy 5/32
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
TIG Torch FV-6 125A w/ Gas
$0.00
Couldn't load pickup availability
DC Welder Stick/TIG 15-200 A, 115-230V
$0.00
Couldn't load pickup availability
Hand Amp Control 12ft
$0.00
Couldn't load pickup availability
192047 Plasma Cutting Electrode
$0.00
Couldn't load pickup availability
8-7500 Plasma Cutting Shield Cup
$0.00
Couldn't load pickup availability
Oxy-Therm Striker Plate
$0.00
Couldn't load pickup availability
Product Description
A multi-steel electrode with a fast-freeze coating to give the welder unparalleled control in the vertical down position.• Versatile – Welds all weldable grades of steels: Cast steel, mild steel, stainless steel, manganese steel, high-strength steel, tool steel, spring steel or any combination of these
• Minimum heat requirements – runs at low amps to reduce distortion
• Designed for all-position welding — even vertical down
• IGNITOR TIP™ for instant strike
• Superior strength and crack resistance
• Tensile strength:
– As deposited: 104,000 PSI/717 MPa
– Work hardened: 150,000 PSI/1034 MPa
• Hardness: – As deposited: 97 Rb
• Work Hardened: 37 Rc
• Elongation: 30%
• Heat Resistance: Good
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Chemical Resistance: Very good
• Impact Strength: 100 ft.-lbs. @ -75°F/-59°C
• Machinablilty: Excellent
• Current: DC or AC
Technical Specifications
| Item#: | EG00550000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/32 " |
| Tensile Strength | 150,000 PSI |
| Yield Strength | 104,000 PSI |
| Elongation | 30 % |
| Hardness | 37 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.01 lb |
