Home Cutting Tools Cryoflex 14" Circular Metal Cutting Saw Blade, 90 Teeth,Carbide Tipped
Cutting Tools

Cryoflex 14" Circular Metal Cutting Saw Blade, 90 Teeth,Carbide Tipped, For Thin Steel
(Pack of 1)

Item#: DY80371490

CryoTool®

• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"

Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


Double Flute Step Drill Bit 3/16 to 7/8"

Item#: 1528387

Cryoslash 3-5/8" x 1/2" x 0.025" Air Saw Blade 32 TPI

Item#: DY80324232

Spot Weld Remover Drill Bit Cobalt 5/16" (M8)

Item#: KT13513

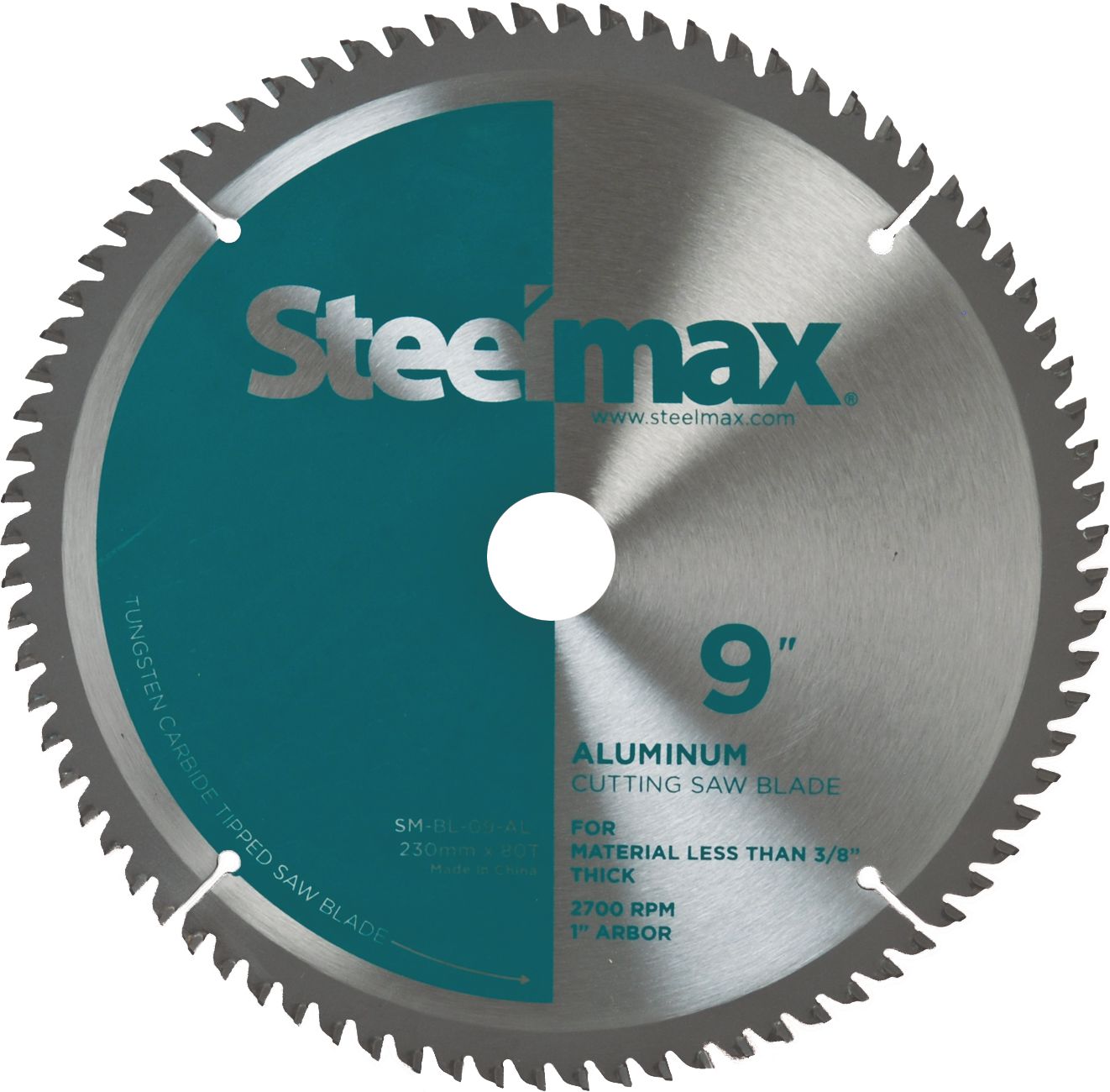

9" Carbide-Tipped Circular Saw Blade

Item#: 50875

14" Chop Saw Blade

Item#: 19726

14" Chop Saw Blade

Item#: 19723

4-1/2 " Circular Saw Blade

Item#: 1677076

Reciprocating Saw Blade 6" 10TPI

Item#: 29504

Cryo+Rescue 9" x 7/8" x 0.062 Reciprocating Saw Blade, 14TPI

Item#: DY80349014

Rocker Molding Clip with Sealer Nylon Blue 17mm

Item#: KT13687

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Air Distributor Defroster Push-Type Retainer

Item#: P85035

100 Piece, 1/4" Shank Master Bit Set

Item#: 1637397

7" Auto-Adjust Pliers

Item#: DY89310301

2Pc Index-Tend Pry Bar Set

Item#: DY89320014

Product Description

• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"

Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.

Technical Specifications

Item#: DY80371490
Diameter 14 "
Number of Teeth 90
Arbor Size 1 "
Maximum RPM 1500 RPM
Material Thickness 3/16 "
UNSPSC #: 27112802
TAA Compliant: Yes
Weight: 3.73 lb
