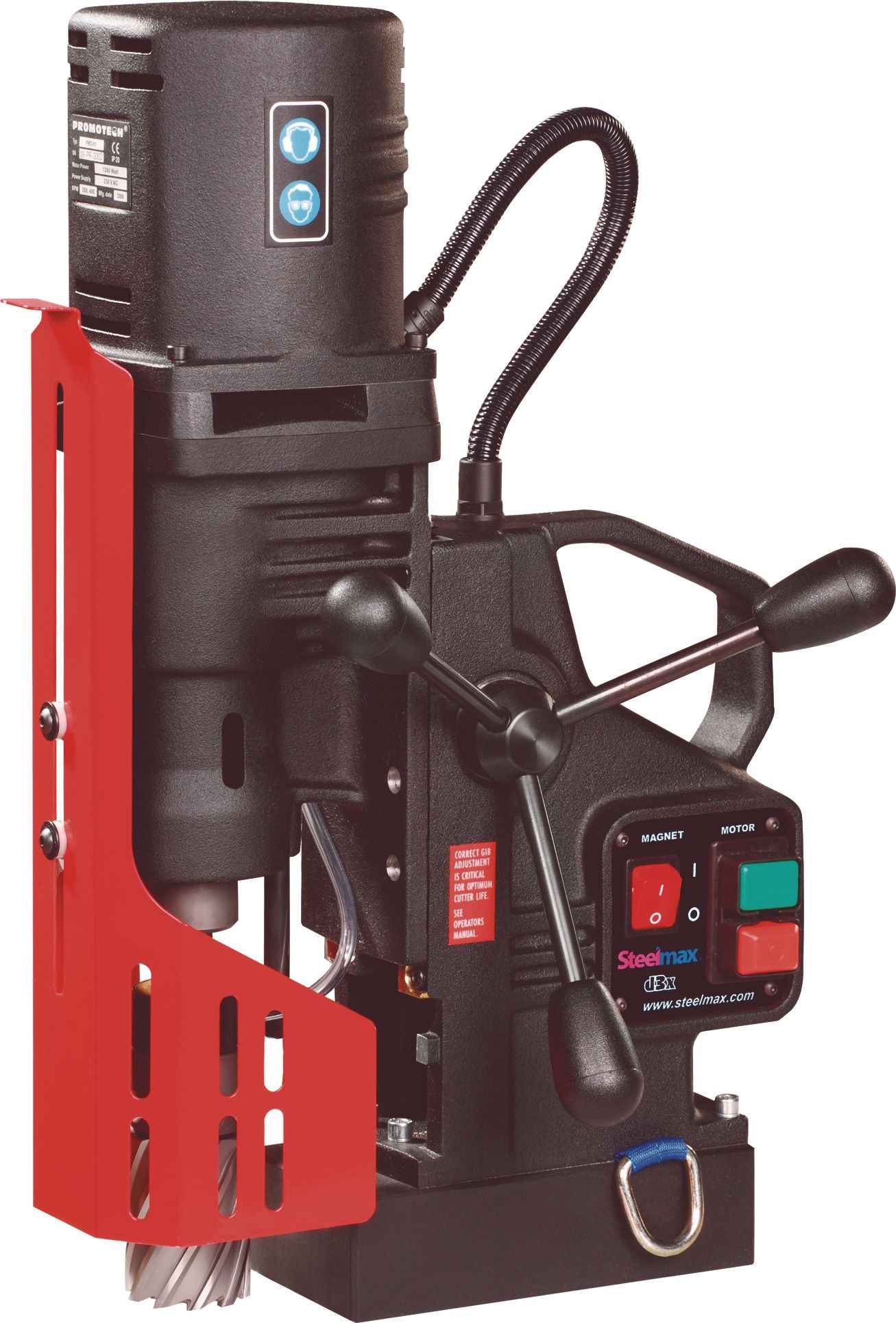

D2X Portable Magnetic Drill, Self-Adjusting Gib System, 2" Depth of Cut, 3/4" Arbor Bore, 1260W Motor
(Pack of
1)
SKU:CW5616 Item#: CW5616
Steelmax® D2X is the portable, powerful, low-maintenance magnetic drill with a unique, self-adjusting gib system that reduces maintenance and costly cutter breakage due to spindle run-out. Longer cutter life means money saved every day you use the D2X.
• Unique, self-adjusting gib system extends cutter life
• Through-spindle coolant system with integrated reservoir
• “Safe Magnet” circuitry increases magnet hold and improves efficiency
• Powerful 1,260W motor and all-metal housing make the D2X a durable production tool
• 2-speed gearbox works with twist bits to 7/8" dia. and annular cutters to 2" dia.
• Adjustable cutter guard with built-in chip breaker
D2X Specifications
• Height: 22-3/4" maximum; 16-3/4" minimum
• Width: 10-11/16"
• Length: 11-11/16"
• Weight: 35 lbs. 9 oz.
• Motor: 1260W, 115V/60Hz or 230V/50Hz, 230V/50Hz, 200 RPM and 400 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,074 lbs.
• Magnetic base: 3-9/16" x 7-1/16" x 1-7/8"
• Magnetic dead lift: 2,697 lbs.
• Cutter dia. (maximum): 2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-13/16"
• Centerline pilot to motor face: 1-3/4"
• Maximum twist drill dia.: 7/8"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold; insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Spot Weld Remover Drill Bit Cobalt 1/4" (M6.5)
$0.00
Couldn't load pickup availability
Aluminum Oxide Grain Locking Grinding Disc 2"
$0.00
Couldn't load pickup availability
Twist-On Abrasive Disc 3"
$0.00
Couldn't load pickup availability
Morse Taper Drill Adapter
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
14" Chop Saw 1450rpm 15A Motor
$0.00
Couldn't load pickup availability
Trigger Switch for 14" Chop Saw
$0.00
Couldn't load pickup availability
Motor Brush Holder for 7-1/4" Circular Saw
$0.00
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
Product Description
Steelmax® D2X is the portable, powerful, low-maintenance magnetic drill with a unique, self-adjusting gib system that reduces maintenance and costly cutter breakage due to spindle run-out. Longer cutter life means money saved every day you use the D2X.• Unique, self-adjusting gib system extends cutter life
• Through-spindle coolant system with integrated reservoir
• “Safe Magnet” circuitry increases magnet hold and improves efficiency
• Powerful 1,260W motor and all-metal housing make the D2X a durable production tool
• 2-speed gearbox works with twist bits to 7/8" dia. and annular cutters to 2" dia.
• Adjustable cutter guard with built-in chip breaker
D2X Specifications
• Height: 22-3/4" maximum; 16-3/4" minimum
• Width: 10-11/16"
• Length: 11-11/16"
• Weight: 35 lbs. 9 oz.
• Motor: 1260W, 115V/60Hz or 230V/50Hz, 230V/50Hz, 200 RPM and 400 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,074 lbs.
• Magnetic base: 3-9/16" x 7-1/16" x 1-7/8"
• Magnetic dead lift: 2,697 lbs.
• Cutter dia. (maximum): 2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-13/16"
• Centerline pilot to motor face: 1-3/4"
• Maximum twist drill dia.: 7/8"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold; insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | CW5616 |
|---|---|
| Manufacturer Model #: | D2X |
| Type | Magnetic Drill |
| Cutter Diameter | 2 " |
| Depth of Cut | 2 " |
| Arbor Bore | 3/4 " |
| Drill Point Breakaway | 1,074 lb |
| Maximum Twist Drill Diameter | 7/8 " |
| Magnetic Dead Lift | 2,697 lb |
| Magnetic Base | 3-9/16" x 7-1/16" x 1-7/8 |
| Centerline Pilot to Motor Face | 1-3/4 " |
| Centerline Pilot to Magnet Face | 1-13/16 " |
| Motor | 1260W, 115V/60Hz or 230V/50Hz, 230V/50Hz, 200 RPM and 400 RPM |
| Length | 11-11/16 " |
| Width | 10-11/16 " |
| Height | 22-3/4" maximum; 16-3/4" minimum |
| Weight | 35s. 9 oz lb |
| UNSPSC #: | 23241801 |
| TAA Compliant: | No |
| Weight: | 57.5 lb |
