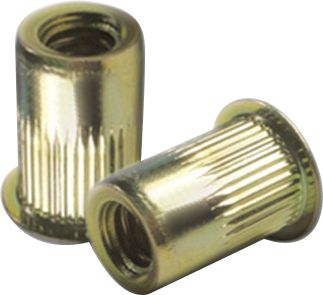

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Large Flange, Coarse Thread, 3/8-16, 0.027 to 0.15" Grip, 0.531" Hole
(Pack of
25)
SKU:51677 Item#: 51677
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-95
Frequently Bought Together
Diamond Grip II Threaded Insert #8-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert M10-1.5
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 140Pcs
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Conversion Kit #10-32
Couldn't load pickup availability
Conversion Kit 1/4-20
Couldn't load pickup availability
Rivet Nut Hand Tool 6mm
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51677 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Grip Range | 0.027 – 0.150 " |
| Flange Type | Large Flange |
| Hole Size | 0.531 " |
| Pilot Drill Size | 17/32 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
