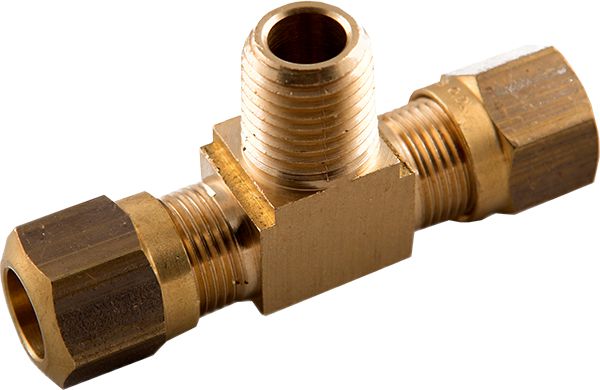

DOT Air Brake Compression Branch Tee for Nylon Tubing, Male, Brass, 1/2 x 1/2 x 3/8", Tube x Tube x Pipe
(Pack of
5)
SKU:1511579 Item#: 1511579
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
DOT Compression Insert Male Brass 1/2 x 3/8"
$0.00
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/2x1/2
$0.00
Couldn't load pickup availability
Parker DOT Field Attachable - Spring Guard 3/8
$0.00
Couldn't load pickup availability
Pistol Grip Grease Gun Model 555-E
$0.00
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Branch Tee Male Brass 1/4 x 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
$0.00
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
DOT Compression Elbow Male 45° Brass 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Ice Melter with Propel® 65lb
$0.00
Couldn't load pickup availability
Wall Mount Dispenser for Hand Cleaner
$0.00
Couldn't load pickup availability
3Pc Multi-Purpose Scraper/Pry Bar Set
$0.00
Couldn't load pickup availability
Ice Melter with Propel® 65lb
$0.00
Couldn't load pickup availability
Wall Mount Dispenser for Hand Cleaner
$0.00
Couldn't load pickup availability
3Pc Multi-Purpose Scraper/Pry Bar Set
$0.00
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 1511579 |
|---|---|
| Manufacturer Model #: | 84302 |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Branch Tee |
| Connection Type A x B x C | Tube x Tube x Pipe |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| Fitting Dimension C | 3/8-18 |
| Size | 1/2X3/8 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 1.28 lb |
