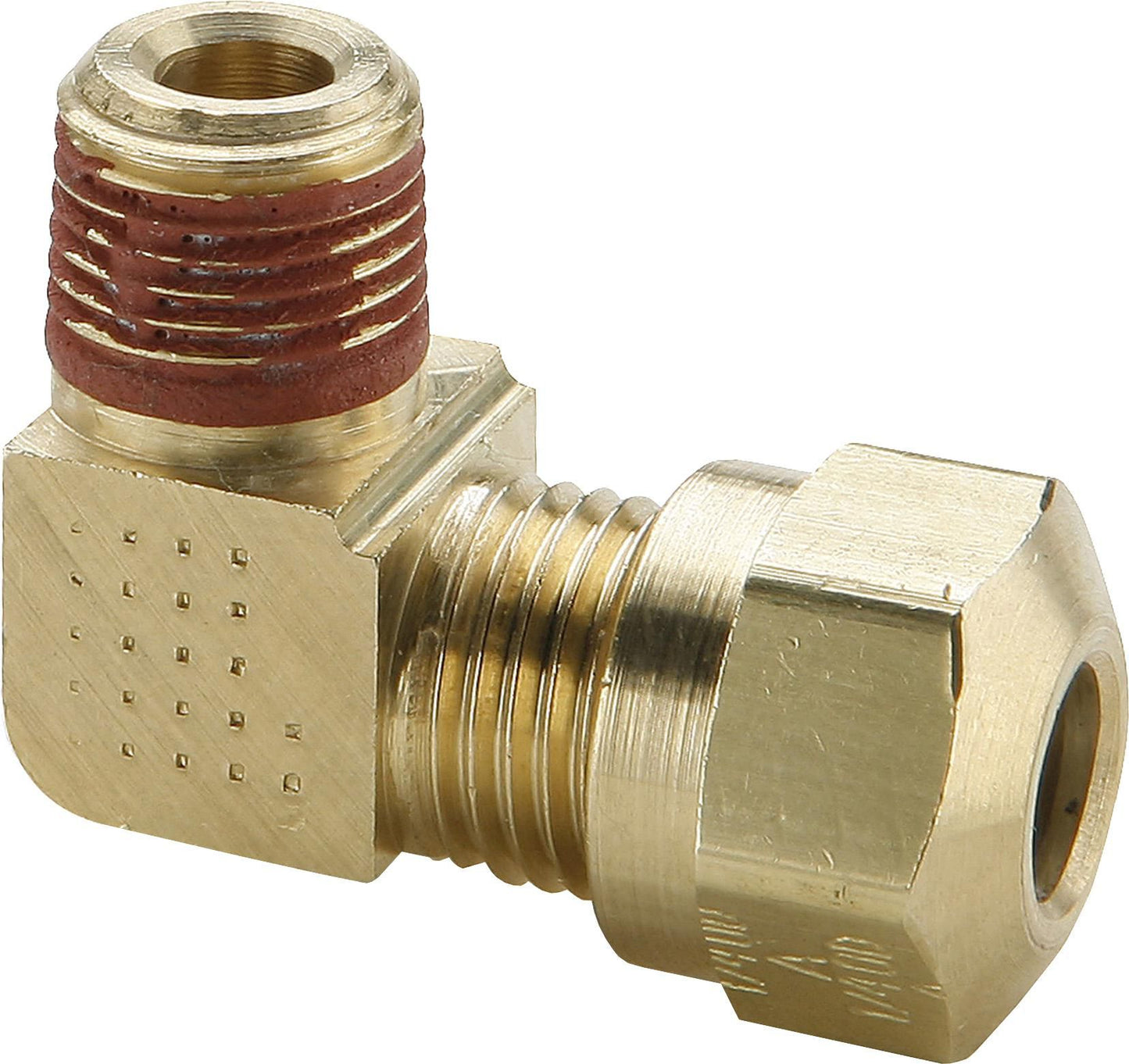

Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/2x1/2
(Pack of
10.0)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 8-10
Frequently Bought Together
DOT Compression Spring Guard Steel 3/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Compression Sleeve 3/8
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x3/8
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
Couldn't load pickup availability
DOT Transmission Connector Male Brass 1/16 x 5/32"
Couldn't load pickup availability
DOT Transmission Connector Male Brass 1/16 x 1/8"
Couldn't load pickup availability
Parker DOT Field Attachable - Female Connector 1/2x7/8-20
Couldn't load pickup availability
Parker DOT Compression - Nylon Tubing Union 1/4x1/4
Couldn't load pickup availability
H353H Truck Hose 1-15/64" OD x 50'
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25' & Accessory Kit
Couldn't load pickup availability
Rubber Air Hose Bulk 3/4" x 300'
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 100'
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84288P |
|---|---|
| Class | Compression Air Brake Fittings |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 90 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 2.48 lb |
