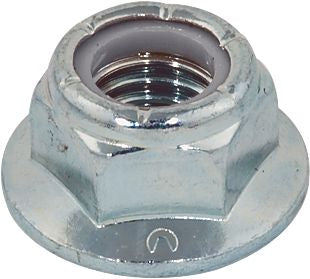

Locknut Flange with Nylon Insert, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 9/16" Across Flats, 0.425" Thickness, 3/8-16
(Pack of
50)
SKU:18246 Item#: 18246
• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness
• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade G for use with Grade 8
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut or on the flange
Couldn't load pickup availability
Catalog page#: 11-28
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
DIN 985 Locknut with Nylon Insert Grade 8 M12-1.25
Couldn't load pickup availability
Flange Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M8-1.25
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Product Description
• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade G for use with Grade 8
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut or on the flange
Technical Specifications
| Item#: | 18246 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Grade | 8 |
| Finish | Bright Zinc |
| Type | Nylon Insert Flange Lock Nut |
| Material | Alloy Steel |
| Thickness | 0.425 " |
| Across Flats | 9/16 " |
| Thread | Coarse |
| Specifications | IFI 100/107 |
| Quantity Per Package | 50.0000 |
| Flange Diameter | 0.810 " |
| UNSPSC #: | 31161712 |
| TAA Compliant: | No |
| Weight: | 1.07 lb |
