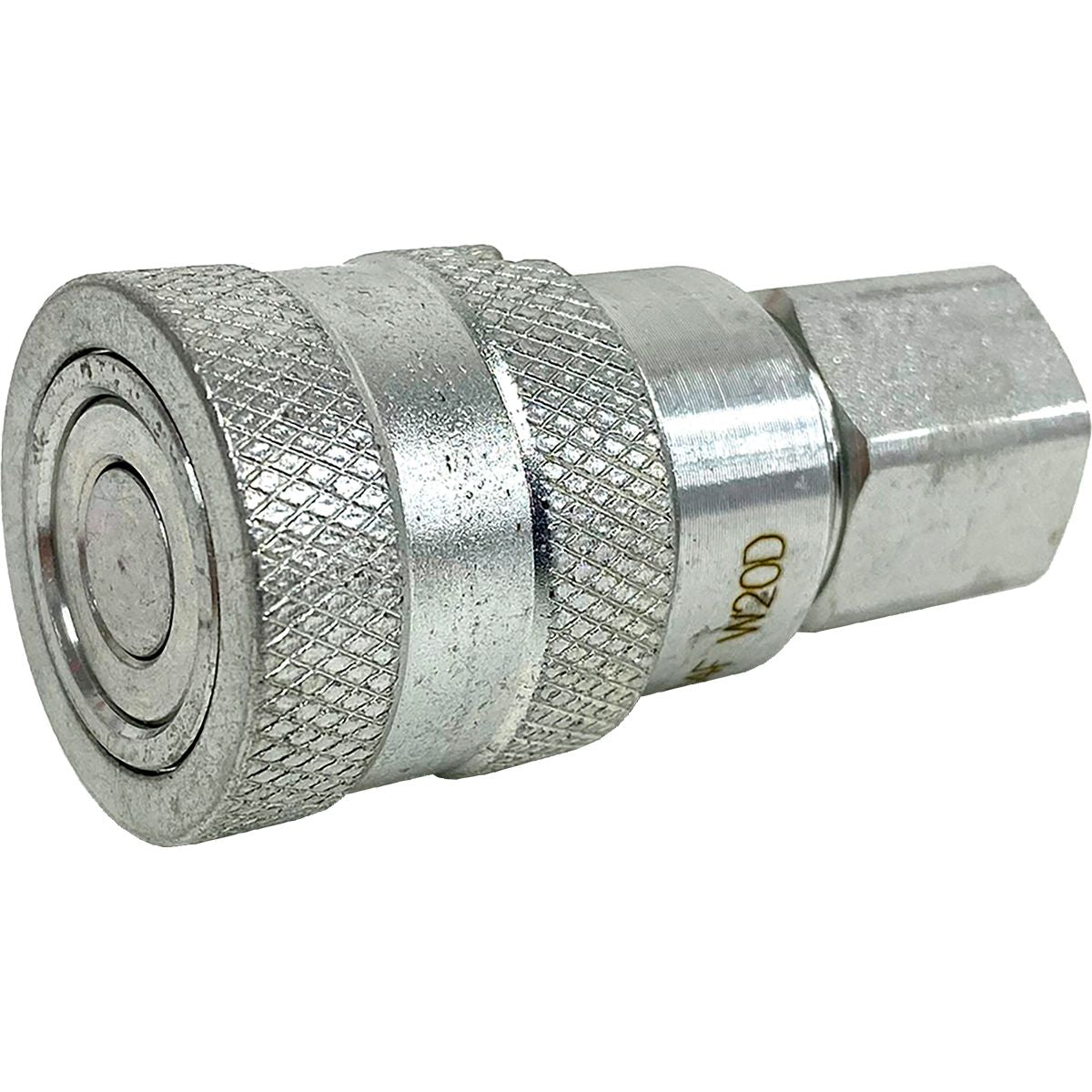

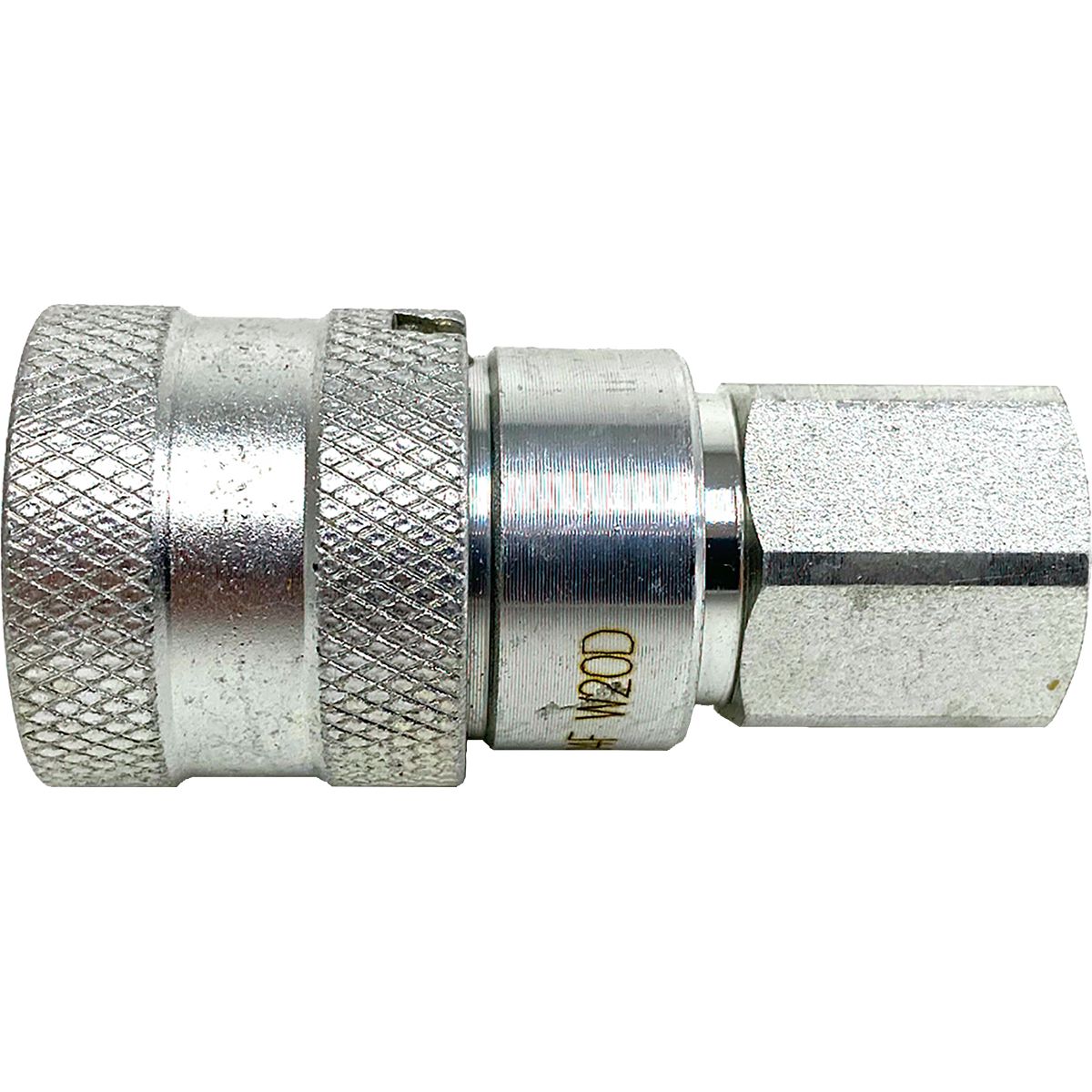

Flatface Hydraulic Quikconnect Fitting, 1/4 ORBF X 1/4 Female Flatface Body, ISO 16028 Compliant, Connects Against 250PSI Pressure
(Pack of
1)
SKU:DY44700134 Item#: DY44700134
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.
• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Frequently Bought Together
Air Conditioning O-Ring HSN Green
$0.00
Couldn't load pickup availability
Braided Collet Orange
$0.00
Couldn't load pickup availability
Spacer Ring Red
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
Hydraulic Dust Cap for Nipple Aluminum 1-1/2"
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 3/4" ORBF X 1/2" Plug
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 1/4-18
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Product Description
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Technical Specifications
| Item#: | DY44700134 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Flat Face Female Coupler |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 1/4 " |
| Thread Size | 7/16-20 |
| Thread Style | Female O-Ring Boss |
| Burst Pressure | 20000 PSI |
| Seal Material | Nitrile O-Ring with PTFE Bonded Seals |
| Material | Zinc Plated Steel |
| Locking Mechanism | Multiple Metal Balls |
| Flow | 3 gal/min |
| Length | 1.89 " |
| Temperature Range | -4°F to 257°F (-20°C to 125°C) |
| Working Pressure | 5,000 PSI |
| Hex Size | 20mm (0.79") |
| Maximum Diameter | 1.10 " |
| Coupled Length | 3.78 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
