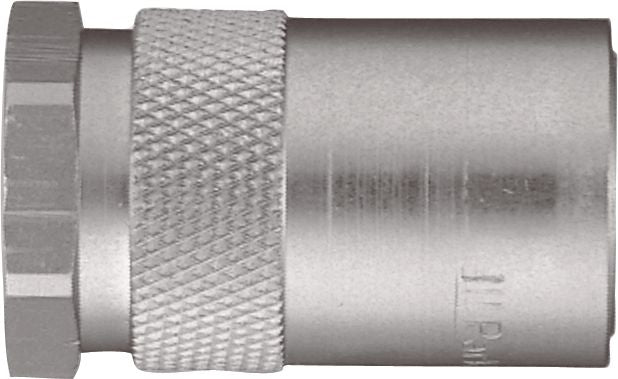

Hydraulic Quick Connect Coupler, Brass, Unvalved, 3/8" x 1/4-18, Female NPTF, 1.84" Length, 500PSI
(Pack of
2)
SKU:55829 Item#: 55829
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.
• Couplers are non-valved and provide maximum flow for efficient cooling• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-SeriesParker: Mold MateFoster: FJTHansen: Flo-Temp
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
Couldn't load pickup availability
FD89-1002-06-06
Couldn't load pickup availability
FD89-1001-06-06
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1-1/4" x 1-1/4"
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Product Description
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.• Couplers are non-valved and provide maximum flow for efficient cooling• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-SeriesParker: Mold MateFoster: FJTHansen: Flo-Temp
Technical Specifications
| Item#: | 55829 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Unvalved |
| Body Size | 3/8 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,200 PSI |
| Seal Material | Silicone |
| Material | Brass |
| Locking Mechanism | 8 Balls |
| Flow | 9 gal/min |
| Length | 1.84 " |
| Temperature Range | -90 to 400 F |
| Working Pressure | 500 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 0.95 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.54 lb |
