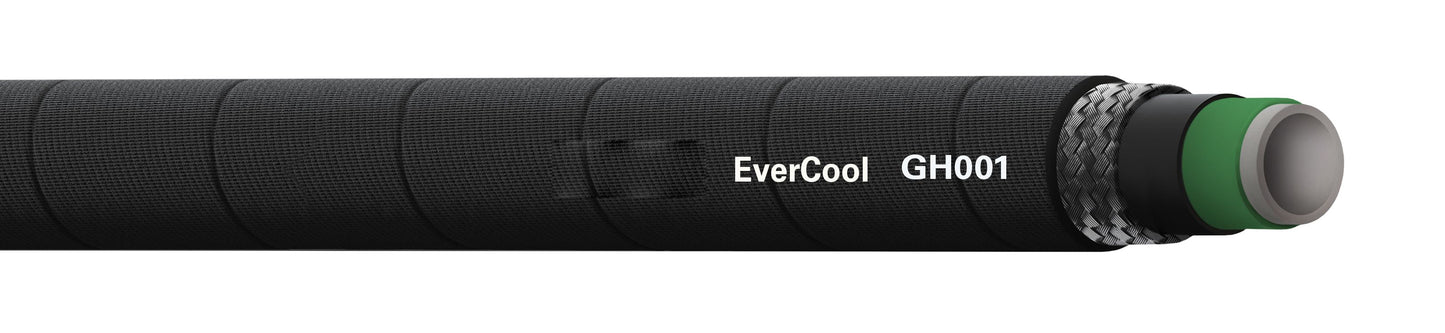

WeatherHd GH001 Multi-Refrigerant Hose, Poly. Braid Rnfrcmnt & Polyamide Veneer Tube, 500PSI, 1/2(-10)"(ID),0.78"(OD),50ft
(Pack of
50)
SKU:17425 10 Item#: 17425 10
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested
• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 200'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 200'
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
$0.00
Couldn't load pickup availability
Metric Female Flareless Sleeve 733204215
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
AC134A Refrigerant Hose 13/32"25ft
$0.00
Couldn't load pickup availability
919 Series PTFE Hose 13/32" 25ft
$0.00
Couldn't load pickup availability
GH001 Multi-Refrigerant Hose 13/32" 50ft
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Technical Specifications
| Item#: | 17425 10 |
|---|---|
| Manufacturer Model #: | GH001-10WR50 |
| Type | Refigerant Hose |
| Category / Performance | Low Pressure |
| Industry Rating 2 | SAE J2064 Type E, Class 1 |
| Manufacturer Series Number | GH001 |
| Manufacturer Series Name | Weatherhead |
| Hose I.D. | 1/2 (-10) " |
| Working Pressure | 500 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 3 " |
| Inner Tube Material | Polyamide veneer |
| Hose Reinforcement | Polyester Braid |
| Hose Cover Material | Chlorobutyl |
| Fitting Series | E-Z Clip Series |
| Temperature | -40F to +275F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 9.0 lb |
