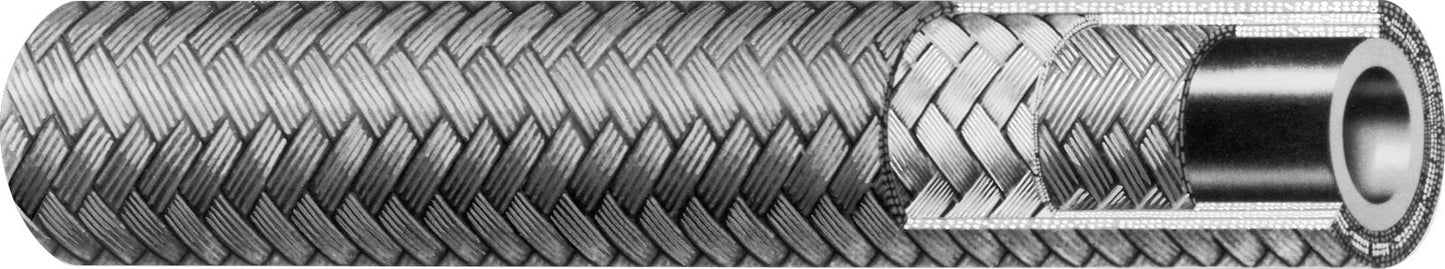

H213 Hydraulic Truck Hose, 13/32-8" ID, 47/64" OD, 50' Length, 1-3/4" Bend Radius, 1250PSI Working Pressure, SAE J14002 Type A1
(Pack of
50)
50-ft. lengths consist of no more than two pieces with none shorter than 10 feet. Total length may vary from 45 to 60 feet.
• Agency Ratings: SAE J1402 Type AI D.O.T. A I
• Fittings Certified: 213 N-Series Field-Attachable, 069 E-Series
• Agency Approvals: None
• Construction:
– Inner Tube: CPE
– Reinforcement: One fiber braid, one steel braid
– Cover: Fiber braid
• Temperature Range:
– Air Brake: –40°F to +200°F (–40°C to +93°C)
– Hot Oil: –50°F to +302°F (–45°C to +150°C)
Use with 213 N-Series Field-Attachable or 069 E-Series fittings
• Application Notes:– General-purpose truck and hydraulic hose– For use in air brake, fuel, diesel fuel and high-temperature petroleum oil applications– -16 size is not SAE or D.O.T. approved for air brake applications
50' lengths consist of no more than 2 pieces with none shorter than 10'. Total length may vary +/- 10%. Bulk lengths consist of no more than 3 pieces with none shorter than 20'. Total length may vary +/- 10%.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
H353H Truck Hose 59/64" OD x 50'
Couldn't load pickup availability
H353H Truck Hose 37/64" OD x 250'
Couldn't load pickup availability
H213 Truck Hose 31/64" OD x 50'
Couldn't load pickup availability
Product Description
50-ft. lengths consist of no more than two pieces with none shorter than 10 feet. Total length may vary from 45 to 60 feet.• Agency Ratings: SAE J1402 Type AI D.O.T. A I
• Fittings Certified: 213 N-Series Field-Attachable, 069 E-Series
• Agency Approvals: None
• Construction:
– Inner Tube: CPE
– Reinforcement: One fiber braid, one steel braid
– Cover: Fiber braid
• Temperature Range:
– Air Brake: –40°F to +200°F (–40°C to +93°C)
– Hot Oil: –50°F to +302°F (–45°C to +150°C)
Use with 213 N-Series Field-Attachable or 069 E-Series fittings
• Application Notes:– General-purpose truck and hydraulic hose– For use in air brake, fuel, diesel fuel and high-temperature petroleum oil applications– -16 size is not SAE or D.O.T. approved for air brake applications
50' lengths consist of no more than 2 pieces with none shorter than 10'. Total length may vary +/- 10%. Bulk lengths consist of no more than 3 pieces with none shorter than 20'. Total length may vary +/- 10%.
Technical Specifications
| Item#: | 64471 08 |
|---|---|
| Type | Truck Hose |
| Category/Performance | Medium Pressure |
| Industry Rating 2 | SAE J14002 Type A1 |
| Industry Rating | DOT A1 |
| Manufacturer Series Number | H213 |
| I.D. | 13/32 (-8) " |
| Working Pressure | 1,250 PSI |
| Burst Pressure | 5,000 PSI |
| Hose O.D. | 47/64 " |
| Bend Radius | 1-3/4 " |
| Inner Tube Material | CPE |
| Hose Reinforcement | 1 Fiber Braid, 1 Steel Braid |
| Hose Cover Material | Fiber Braid |
| Fitting Series | Field Attachable 213N Series |
| Temperature | Air Brake -40F to +200F, Hot Oil -50F to +302 F |
| Color | Black |
| UNSPSC #: | 40142000 |
| TAA Compliant: | Yes |
| Weight: | 11.0 lb |
