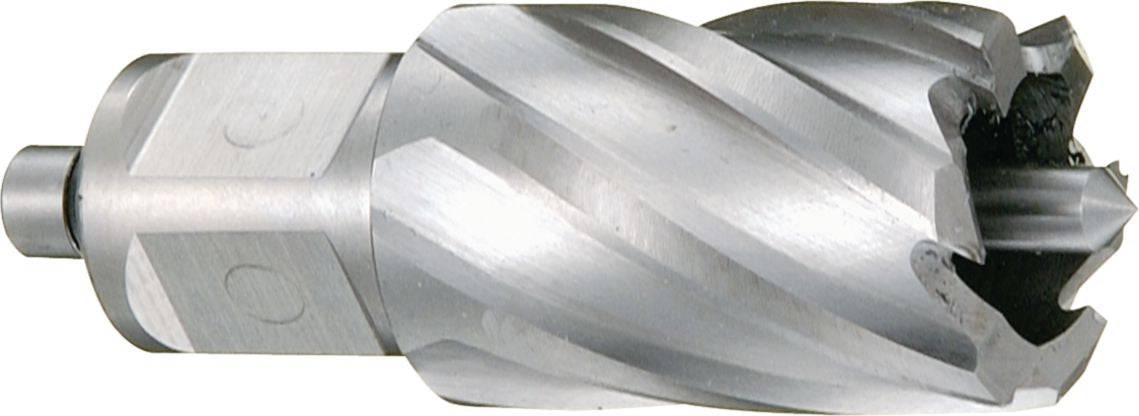

Annular Cutter, High-Performance M2-AL, 1" Depth of Cut, 1-3/16" Diameter
(Pack of
1)
SKU:15234 Item#: 15234
Steelmax® Annular Cutters reduce horsepower and torque requirements by only cutting the periphery of the hole resulting in a burr-free, reamed-quality hole. As a result, the operation is completed three times faster than costly pilot hole and step drilling. Chip load per tooth is greatly reduced, for high penetration, improved hole quality and longer tool life. The core or “slug” left behind is evidence of this efficient cutting method. Holes on curved surfaces as well as interrupted cuts can be made without distortion.
• Drill holes three times faster than with a twist drill
• Drill on curved surfaces such as pipe or tubing
• Produce reamed-quality, burr-free holes
• Overlap centers on existing holes
• Reduced machine size and horsepower requirements
• Cutters are made from high-performance M2-AL
Individual annular cutters do not come supplied with the center pins. Center pins are required and must be ordered separately.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
HSS Annular Cutter 1-1/16"
$0.00
Couldn't load pickup availability
CryoBore 1" Carbide Tooth Annular Cutter, 2" Cutting Depth
$0.00
Couldn't load pickup availability
HSS Annular Cutter 2-3/8"
$0.00
Couldn't load pickup availability
Annular Cutter Ejector Pin For 1" Cutting Depth Cutters
$0.00
Couldn't load pickup availability
Annular Cutter Ejector Pin For 2" Cutting Depth Cutters
$0.00
Couldn't load pickup availability
1" Dia. Carbide Tipped Annular Cutter, 1-3/8" Cutting Depth
$0.00
Couldn't load pickup availability
Twist-On Abrasive Disc 2"
$0.00
Couldn't load pickup availability
Air Saw Blade 4" 24TPI
$0.00
Couldn't load pickup availability
Zirconium Grain Locking Grinding Disc 2"
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
100 Piece, 1/4" Shank Master Bit Set
$0.00
Couldn't load pickup availability
7" Auto-Adjust Pliers
$0.00
Couldn't load pickup availability
2Pc Index-Tend Pry Bar Set
$0.00
Couldn't load pickup availability
3" Partsmaster Type R Surface Conditioning Disk-Coarse
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" SS Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
3" Partsmaster Type R Surface Conditioning Disk-Coarse
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" SS Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
Product Description
Steelmax® Annular Cutters reduce horsepower and torque requirements by only cutting the periphery of the hole resulting in a burr-free, reamed-quality hole. As a result, the operation is completed three times faster than costly pilot hole and step drilling. Chip load per tooth is greatly reduced, for high penetration, improved hole quality and longer tool life. The core or “slug” left behind is evidence of this efficient cutting method. Holes on curved surfaces as well as interrupted cuts can be made without distortion.• Drill holes three times faster than with a twist drill
• Drill on curved surfaces such as pipe or tubing
• Produce reamed-quality, burr-free holes
• Overlap centers on existing holes
• Reduced machine size and horsepower requirements
• Cutters are made from high-performance M2-AL
Individual annular cutters do not come supplied with the center pins. Center pins are required and must be ordered separately.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 15234 |
|---|---|
| Manufacturer Model #: | SM-AC-1188-1 |
| Cutting Diameter | 1-3/16 " |
| Depth of Cut | 1 " |
| Tooth Material | M2-AL |
| UNSPSC #: | 23241600 |
| TAA Compliant: | No |
| Weight: | 0.32 lb |
