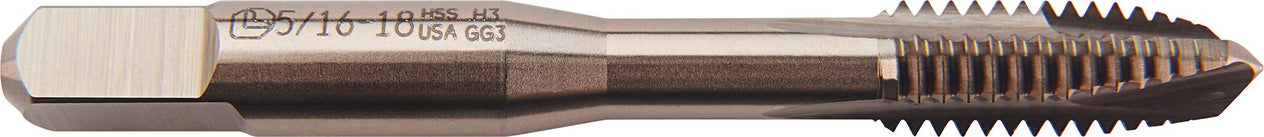

Spiral Point Hand Tap, High Speed Steel, 3 Flute, 5/16-18, 11/16" Thread Length
(Pack of
1)
SKU:61131 Item#: 61131
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
$0.00
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
$0.00
Couldn't load pickup availability
Cryoslash 3-5/8" x 1/2" x 0.025" Air Saw Blade 24 TPI
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 3-48
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap M6 x 1
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5-40
$0.00
Couldn't load pickup availability
Cryo-Drap 7/16"-14 Drill & Tap Combo, 135o Split Point, W/Flats
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M14 x 2
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M4 x 0.7
$0.00
Couldn't load pickup availability
Universal Socket Set, Metric, 3/8" Drive, 12pc
$0.00
Couldn't load pickup availability
Universal Socket Set, 3/8" Drive, 20pc
$0.00
Couldn't load pickup availability
8Pc Metric Mini Double Head Wrench Set
$0.00
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61131 |
|---|---|
| Type | Fractional |
| Diameter | 5/16 " |
| Pitch | 18 |
| Flutes | 3 |
| Thread Length | 11/16 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | F |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.05 lb |
