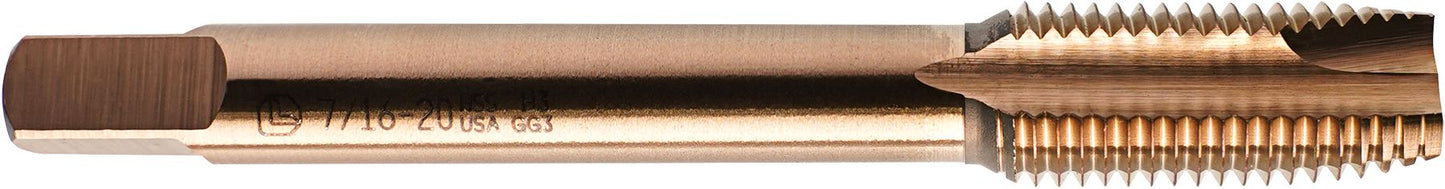

Spiral Point Hand Tap, High Speed Steel, 3 Flute, 7/16-20, 7/8" Thread Length
(Pack of
1)
SKU:61137 Item#: 61137
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Stemmed Knot-Type Wire Wheel 3"
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 3/8" (M10)
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Pilotdrive Cryotap M18 x 1.5 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M16 x 1.5 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap 7/16"-14 Starter Hand Tap
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 3/8-16
Couldn't load pickup availability
3-Flute HSS Taper Hand Tap 3-48
Couldn't load pickup availability
2-Flute HSS Taper Hand Tap M1.6 x 0.35
Couldn't load pickup availability
Interchangeable Hex Bit Set 24Pc SAE
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
Couldn't load pickup availability
8" Dual Jaw Adj and Pipe Wrench
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61137 |
|---|---|
| Type | Fractional |
| Diameter | 7/16 " |
| Pitch | 20 |
| Flutes | 3 |
| Thread Length | 7/8 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | W |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
