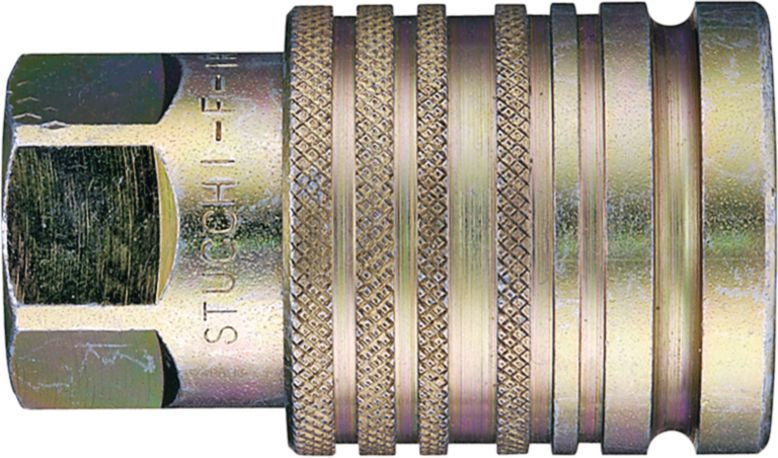

Hydraulic Quick Connect Coupler, Carbon Steel, Push/Pull Sleeve, 1/2" x 1/2-14, Female NPT, 2.5" Length, 3625PSI
(Pack of
1)
SKU:28638 Item#: 28638
Push/pull couplers offer you the same functionality and quality as AG couplers with the added benefit of a push/pull release sleeve, so they’re easier to connect and disconnect with one hand in hard-to-reach places.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Frequently Bought Together
Air Conditioning O-Ring HSN 0.617 x 0.769"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.8 x 14.4mm
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/2"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/4"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 3/8-18
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Push/pull couplers offer you the same functionality and quality as AG couplers with the added benefit of a push/pull release sleeve, so they’re easier to connect and disconnect with one hand in hard-to-reach places.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Technical Specifications
| Item#: | 28638 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Push/Pull Sleeve |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPT |
| Burst Pressure | 11,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Locking Mechanism | 9 Balls |
| Flow | 12 gal/min |
| Length | 2.50 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,625 PSI |
| Hex Size | 1.06 " |
| Maximum Diameter | 1.50 " |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.62 lb |
