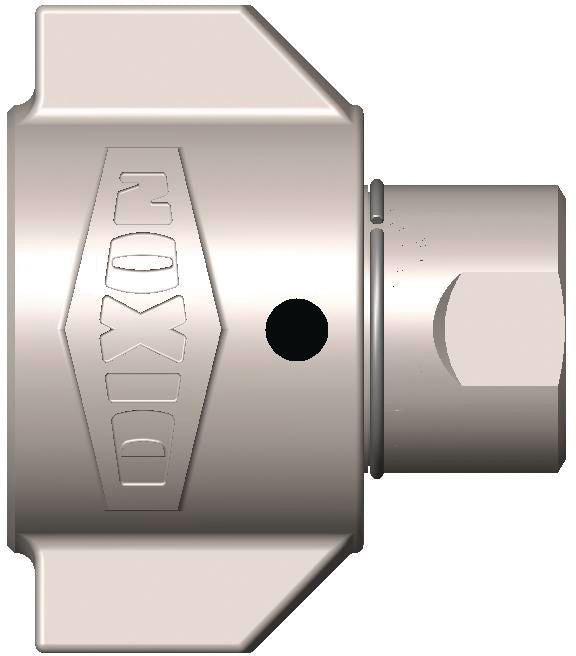

Hydraulic Quick Connect Coupler, Steel, Wing Style, 3/4" x 1/2-14, Female NPTF, 2.76" Length, 5000PSI
(Pack of
1)
SKU:20986 Item#: 20986
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS SeriesSnap-tite: 75 Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.8 x 14.4mm
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/4"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 3/8-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Product Description
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environmentsDixon: WS SeriesSnap-tite: 75 Series
Technical Specifications
| Item#: | 20986 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Wing Style |
| Body Size | 3/4 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 32,800 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 35 gal/min |
| Length | 2.76 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | - " |
| Maximum Diameter | 3.23 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 1.92 lb |
