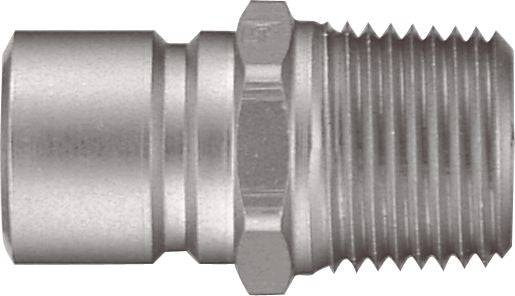

Hydraulic Quick Connect Nipple, Brass, Unvalved, 3/8" x 1/2-14, Male NPTF, 1.58" Length, 300PSI
(Pack of
2)
SKU:55696 Item#: 55696
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.
• Couplers are non-valved and provide maximum flow for efficient cooling• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-SeriesParker: Mold MateFoster: FJTHansen: Flo-Temp
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Braided Collet Orange
$0.00
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x G-3/8-19
$0.00
Couldn't load pickup availability
Spacer Ring Red
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1/2" FPT X 1/2" Body
$0.00
Couldn't load pickup availability
Hydraulic Check Valve 1-11/12" x 1-11/12
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1" x 1-11-1/2
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Product Description
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.• Couplers are non-valved and provide maximum flow for efficient cooling• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-SeriesParker: Mold MateFoster: FJTHansen: Flo-Temp
Technical Specifications
| Item#: | 55696 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Unvalved |
| Body Size | 3/8 " |
| Thread Size | 1/2-14 |
| Thread Style | Male NPTF |
| Burst Pressure | 14,500 PSI |
| Seal Material | Silicone |
| Material | Brass |
| Flow | 9 gal/min |
| Length | 1.58 " |
| Temperature Range | -90 to 400 F |
| Working Pressure | 300 PSI |
| Hex Size | 7/8 " |
| Maximum Diameter | 1.01 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
