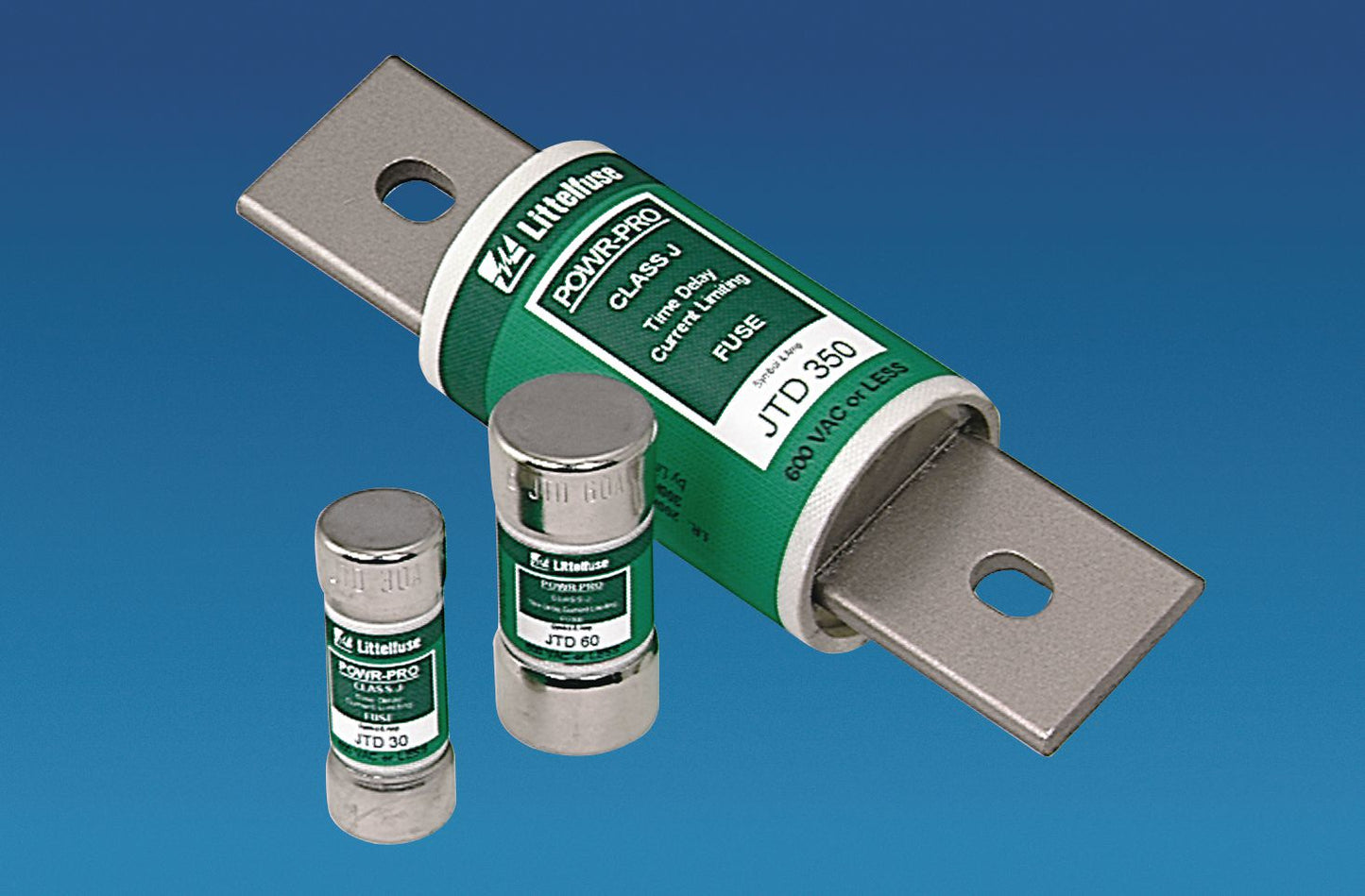

JTD Series Class J Indicator Fuse, 30 Amps, 600 Volts, Time Delay
(Pack of
1)
SKU:19889 Item#: 19889
• Indicator fuses provide visual blown fuse indication at a glance
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Interrupting rating: 200,000A rms symmetrical; 300,000A rms symmetrical (UL listed Special Purpose)• UL listed Class J Fuses per UL 198C• CSA certified HRCI-J per C22.2 #106• Meets Federal Specification WF1814 (QPL)
• Provide space-saving protection for service entrance, main, feeder and general-purpose branch circuits
• Time-delay characteristics and high current limitation mean the JTD fuse is also used in the protection of circuits with high-inrush currents such as motors, transformers and solenoids, including both IEC-rated and NEMA-rated devices
Fuses 100A and higher have blade ends
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Miniature Incandescent Bulb 12V 32CP
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Flashlight with Continuity Tester
Couldn't load pickup availability
MINI Fuse 5A Tan
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
MINI Fuse 3A Purple
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 90A
Couldn't load pickup availability
FLNR Series Class RK5 Indicator Fuse 40A
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 10A
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Product Description
• Indicator fuses provide visual blown fuse indication at a glance• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Interrupting rating: 200,000A rms symmetrical; 300,000A rms symmetrical (UL listed Special Purpose)• UL listed Class J Fuses per UL 198C• CSA certified HRCI-J per C22.2 #106• Meets Federal Specification WF1814 (QPL)
• Provide space-saving protection for service entrance, main, feeder and general-purpose branch circuits
• Time-delay characteristics and high current limitation mean the JTD fuse is also used in the protection of circuits with high-inrush currents such as motors, transformers and solenoids, including both IEC-rated and NEMA-rated devices
Fuses 100A and higher have blade ends
Technical Specifications
| Item#: | 19889 |
|---|---|
| Style | JTD, Class J Fuses, Non-Indicator Series |
| Amperage | 30 A |
| Approvals | UL, CSA |
| Type | Fuses |
| Bussman Number | LPJ-30SP |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
