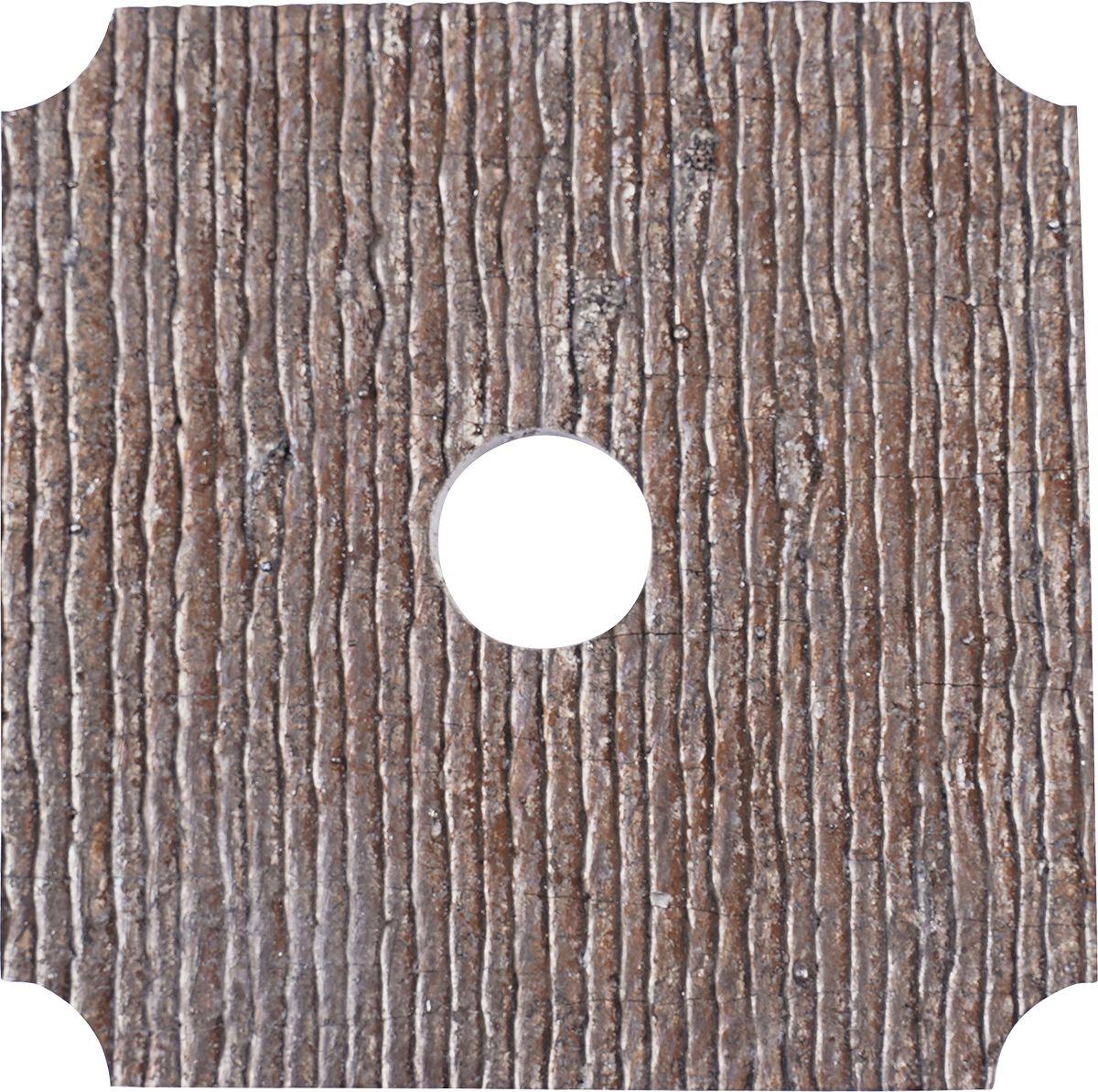

Cryogeniclly Treated Carbide Overlay Plates Light Weight Hardness 66-68 Rc Service Temperature Up To 400F With Plug Hole
(Pack of
1)
SKU:EG09910436 Item#: EG09910436
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.
• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Frequently Bought Together
Anti-Rattle/Squeak BRS Tape 8 x 10"
$0.00
Couldn't load pickup availability
10" Forman's Favorite Heavy-Duty Copper & Aluminum Cable Cutter Pliers
$0.00
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 4X4X13/64
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 3/16X3X4
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 4X4X13/64
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X5X7
$0.00
Couldn't load pickup availability
Plastic Inside Corner No Wave Welder Staple
$0.00
Couldn't load pickup availability
Plastic Welder Staple Assortment 400Pcs
$0.00
Couldn't load pickup availability
Rosin Core Solder 1/16"
$0.00
Couldn't load pickup availability
Product Description
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Technical Specifications
| Item#: | EG09910436 |
|---|---|
| Type | Carbide Overlay Plate |
| Total Thickness | 13/64 " |
| Plate Width | 4 " |
| Plate Length | 36 " |
| Size | 4" x 36" x 13/64 " |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
| Weight: | 7.58 lb |
