Home Fasteners Locknut Tri-Lobular Thick Grade C 3/8-16
Fasteners

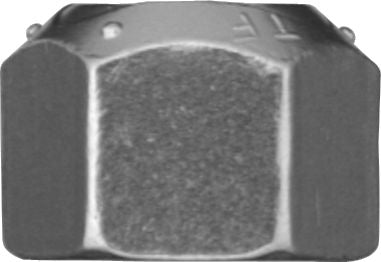

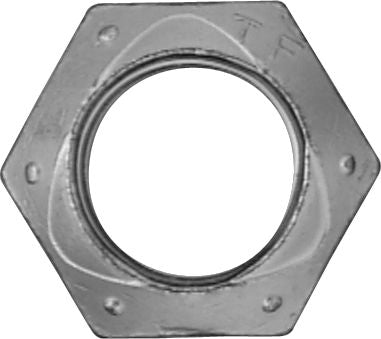

Tri-Lobular Thick Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread, 13/32" Thickness, 9/16" Across Flats, 3/8-16
(Pack of 50)

Item#: 53697

Tru-Torq®

• Specifically designed for use with Lawson’s Tru-Torq® fastening system
• Tri-lobular locking feature for even pressure distribution and superior engageability
• Cadmium-plated with Friction Control
• 180,000 PSI minimum proof-load strength
• Meets or exceeds SAE J995
• Conforms to ANSI B18.2.2
NOTE: Not recommended for use above 450°F (232°C).

Read More
Check Availability

Catalog page#: 11-10

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M8

Item#: 80263

Open End Rivet Dome Head Aluminum 3/16"

Item#: 485

Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm

Item#: 55602

DIN 985 Locknut with Nylon Insert Grade 8 M12-1.25

Item#: 82279

Flange Locknut Grade 8 Steel M10-1.5

Item#: 18253

Jam Nut with Nylon Insert Grade 2 1-8

Item#: 54666

Hex Nut Grade 8 Steel M8-1.25

Item#: 4304

Hex Flange Nut Grade 8 Steel M8-1.25

Item#: 57129

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Hex Nut Grade 8 Steel M6-1

Item#: 4302

Hex Flange Bolt Grade 10.9 M6-1 x 12mm

Item#: 28678

Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Product Description

• Specifically designed for use with Lawson’s Tru-Torq® fastening system
• Tri-lobular locking feature for even pressure distribution and superior engageability
• Cadmium-plated with Friction Control
• 180,000 PSI minimum proof-load strength
• Meets or exceeds SAE J995
• Conforms to ANSI B18.2.2
NOTE: Not recommended for use above 450°F (232°C).

Technical Specifications

Item#: 53697
Diameter 3/8 "
Thread Pitch 16
Grade C
Finish Zinc/Wax
Type Tri-Lobular Lock Nut
Material Alloy Steel
Thickness 13/32 "
Across Flats 9/16 "
Thread Coarse
Specifications IFI 100/107 and ANSI B18.2.2
Maximum Temperature 450º F
Proof 180,000 PSI
Quantity Per Package 50.0000
UNSPSC #: 31161716
TAA Compliant: Yes
Weight: 0.91 lb
