M4KH Hydraulic Hose, Nitrile, steel wire braid, 1/2" ID, 0.82" OD, 50', 4000PSI
(Pack of
1)
Global M4KH High-Temp hose is recommended for high–pressure hydraulic applications at elevated temperatures. Exceeds ISO 18752 Grade C, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.
• The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
• For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series]
• Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
• Tested to 600,000 impulse cycles, 3 times the industry standard
• Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids
• Meets Flame Resistance Acceptance Designation MSHA 2G
• Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms
• M4KH has tighter minimum bend radius than SAE 100R19 at 4000 PSI working pressure in all ID's
• 70% of EN 857 2SC and 50% of EN 853 2SN bend radius at rated working pressure
• Alternative to spiral hoses in high pressure lines where flexibility is required
• Validated with MegaCrimp™
• Working pressure: 28 MPa
• Cover: MSHA approved
Temperature Range:
• -40°C to +121°C
• -40°F to +250°F
• Design factor: 4:1
• Size: 1/4" to 3/4"
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 0.93" x 50'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 300 Foot
Couldn't load pickup availability
MC-LC32 MegaClean Hand Launcher Case Only
Couldn't load pickup availability
MC-HPB-14 MegaClean Hose Foam Projectile
Couldn't load pickup availability
MC-HP-10-1 MegaClean Hose Foam Projectile
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 100'
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 50'
Couldn't load pickup availability

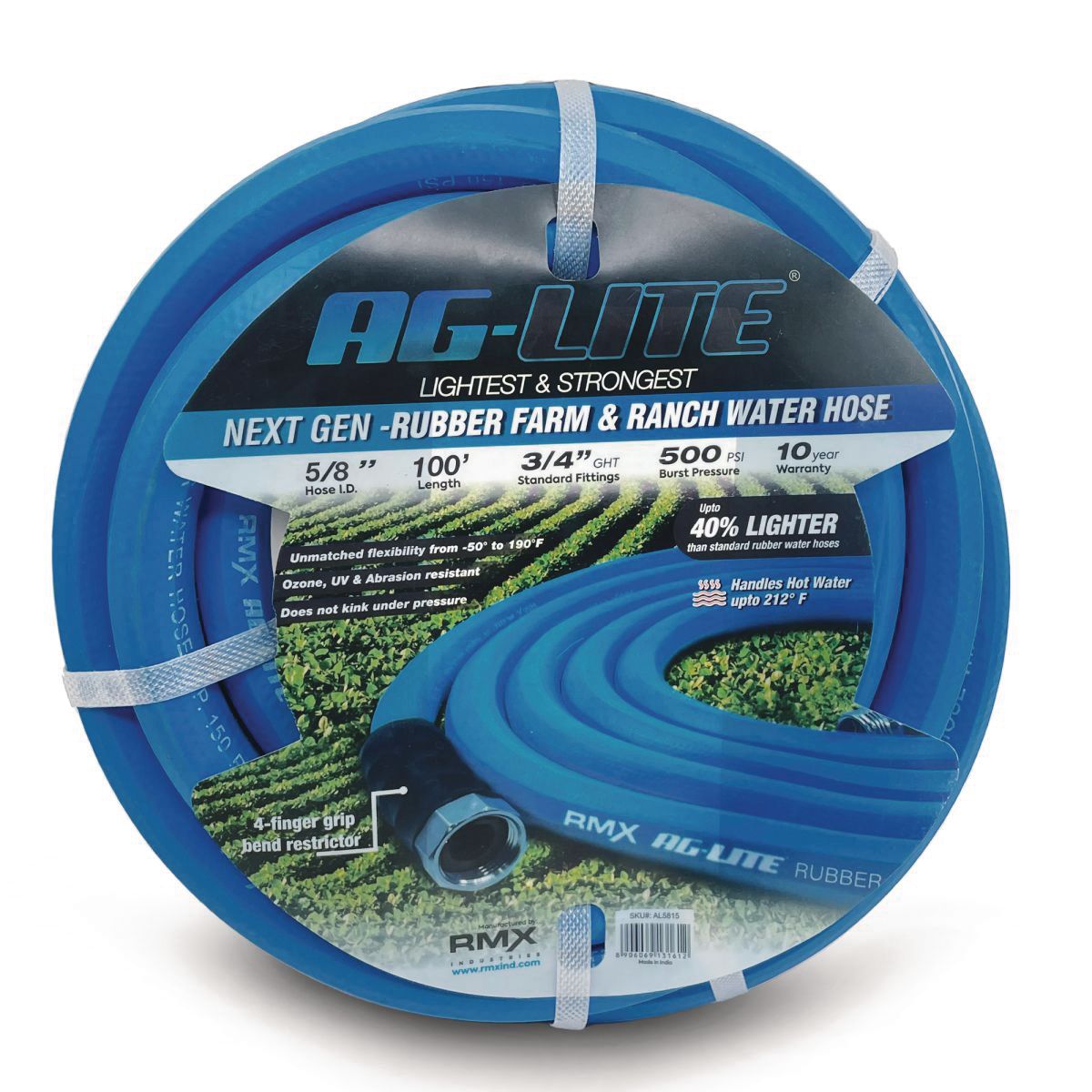

AG-Lite Rubber Water Hose Assembly 5/8" x 100'
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
Global M4KH High-Temp hose is recommended for high–pressure hydraulic applications at elevated temperatures. Exceeds ISO 18752 Grade C, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.• The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
• For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series]
• Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
• Tested to 600,000 impulse cycles, 3 times the industry standard
• Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids
• Meets Flame Resistance Acceptance Designation MSHA 2G
• Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms
• M4KH has tighter minimum bend radius than SAE 100R19 at 4000 PSI working pressure in all ID's
• 70% of EN 857 2SC and 50% of EN 853 2SN bend radius at rated working pressure
• Alternative to spiral hoses in high pressure lines where flexibility is required
• Validated with MegaCrimp™
• Working pressure: 28 MPa
• Cover: MSHA approved
Temperature Range:
• -40°C to +121°C
• -40°F to +250°F
• Design factor: 4:1
• Size: 1/4" to 3/4"
Technical Specifications
| Item#: | 1645368 |
|---|---|
| Industrial/Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category/Performance | High Pressure |
| Industry Rating 1 | 100R19 |
| Manufacturer Series Number | 8M4KH |
| Manufacturer Series Name | PROXT PRO |
| I.D. | 1/2 (-8) " |
| Hose I.D. | 1/2 " |
| Hose O.D. | 0.8 " |
| Working Pressure | 4,000 PSI |
| Burst Pressure | 16,000 PSI |
| Bend Radius | 3.5 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | steel wire braid |
| Hose Cover Material | Polychloroprene (Neoprene) - Type A |
| Minimum Temperature | -40 °F |
| Maximum Temperature | 250 °F |
| Color | Black |
| Length | 50 ft |
| Dash Size | 8 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
