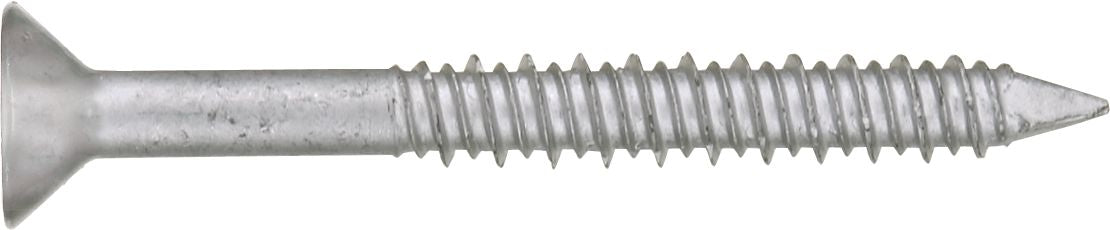

Masonry Anchor TORX® Head Steel 5/16 x 4"
(Pack of
50.0)
UltraCon+® Anchors and Drill Bits
• Fast installation – drill hole, drive anchor
• Anchors available in three head styles: Slotted hex washer head for most applications; TORX® head provides flush seating for countersunk applications; 5/16" hex washer head has an oversized (0.540") washer face
• Replaces expansion anchors, plugs and screws
• Hi-Lo threads provide exceptional holding strength with no spalling
• Notched cutting edges for easy installation – cuts threads into poured concrete, brick or hollow block
• Gimlet point for self drilling into wood base material
• Reversible and removable
• Stalgard®-coated for superior corrosion resistance – withstands a minimum of 800 hours of neutral salt-spray testing without evidence of red rust on significant surfaces
• Carbide-Tipped UltraCon® Masonry Hammer Drill Bits are required – these bits are special size and tolerance products; use of any other bit will cause inconsistent performance of the anchor (sold separately)
5/16" dia. UltraCon® Anchors have a silver Stalgard® finish.
UltraCon® and Stalgard® are registered trademarks of Acument Intellectual Properties, LLC.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Masonry Anchor Assortment 700Pcs
Couldn't load pickup availability
Toggle Bolt Anchor Assortment 70Pcs
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Assortment 283Pcs
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Masonry Anchor Phillips Head #14-10 x 2-1/4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 1"
Couldn't load pickup availability
Masonry Anchor Star Head Steel 1/4 x 1-3/4"
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Product Description
UltraCon+® Anchors and Drill Bits• Fast installation – drill hole, drive anchor
• Anchors available in three head styles: Slotted hex washer head for most applications; TORX® head provides flush seating for countersunk applications; 5/16" hex washer head has an oversized (0.540") washer face
• Replaces expansion anchors, plugs and screws
• Hi-Lo threads provide exceptional holding strength with no spalling
• Notched cutting edges for easy installation – cuts threads into poured concrete, brick or hollow block
• Gimlet point for self drilling into wood base material
• Reversible and removable
• Stalgard®-coated for superior corrosion resistance – withstands a minimum of 800 hours of neutral salt-spray testing without evidence of red rust on significant surfaces
• Carbide-Tipped UltraCon® Masonry Hammer Drill Bits are required – these bits are special size and tolerance products; use of any other bit will cause inconsistent performance of the anchor (sold separately)
5/16" dia. UltraCon® Anchors have a silver Stalgard® finish.
UltraCon® and Stalgard® are registered trademarks of Acument Intellectual Properties, LLC.
Technical Specifications
| Item#: | 60759 |
|---|---|
| Diameter | 5/16 " |
| Length | 4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Finish | Stalgard-Coated |
| For Material Thickness | 2-1/2 - 3 " |
| Drive | TORX® |
| Drive Size | T30 |
| Drill Size | 1/4 " |
| Head Style | Flat |
| Drive Style | TORX® |
| UNSPSC #: | 31162104 |
| TAA Compliant: | Yes |
| Weight: | 2.75 lb |
