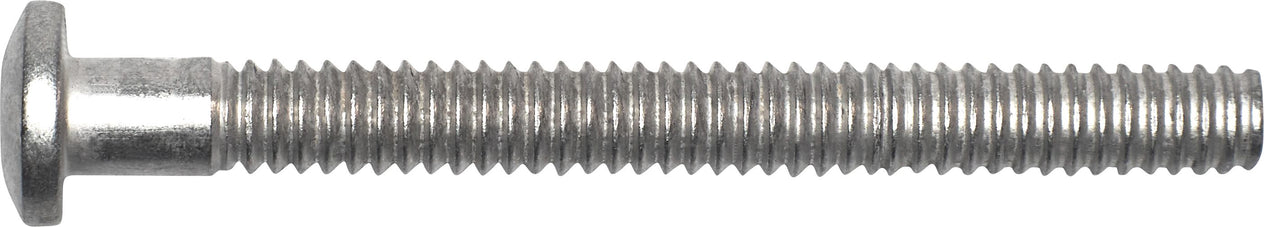

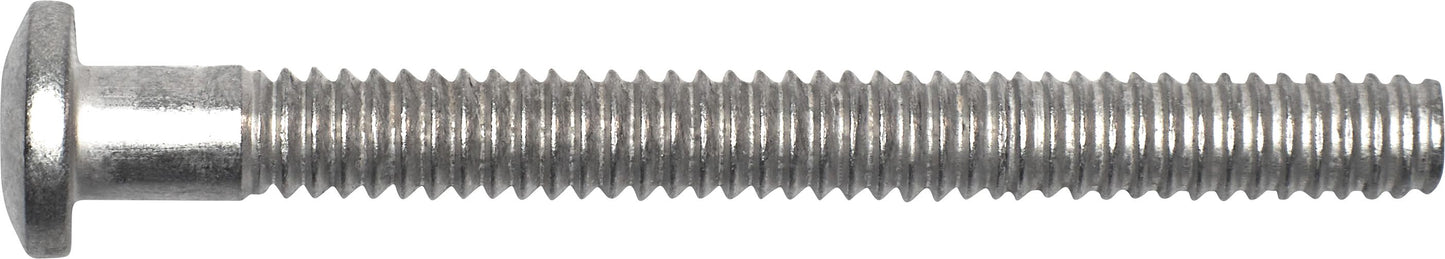

Multi-Grip Lockbolt, Button/Brazier Head, Aluminum, 1/4" Diameter, 0.312 to 1.25" Grip Range
(Pack of
100)
SKU:1543712 Item#: 1543712
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.
• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Couldn't load pickup availability
Catalog page#: 11-125
Frequently Bought Together
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 3/8"
Couldn't load pickup availability
HuckBolt® C50L® Rivet Lockbolt Carbon Steel 1/2"
Couldn't load pickup availability
Multi-Grip Lockbolt Truss Head Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Collar Flanged 3/16"
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Product Description
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.• Grip range covers a wide range of material thickness to suit a wide variety of applications
• Consistent high clamp force, shear, and tensile strength
• High speed assembly
• Excellent vibration resistance
• Consistent, high performance
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
• Ideal for fastening metal to metal
• Commercial vehicles
• Heating and ventilation
• Frame building
Technical Specifications
| Item#: | 1543712 |
|---|---|
| Series | Multi-Grip |
| Diameter | 1/4 " |
| Maximum Hole Size | 0.265 " |
| Grip Range | 0.312 – 1.250 " |
| Head Style | Button (Brazier) Head |
| Length | 2.560 " |
| Material | Aluminum |
| Finish | Plain |
| Head Diameter | 0.475 – 0.525 " |
| Head Height | 0.136 – 0.152 " |
| Tensile Strength | 1,620 lb |
| Shear Strength | 1,200 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.34 lb |
