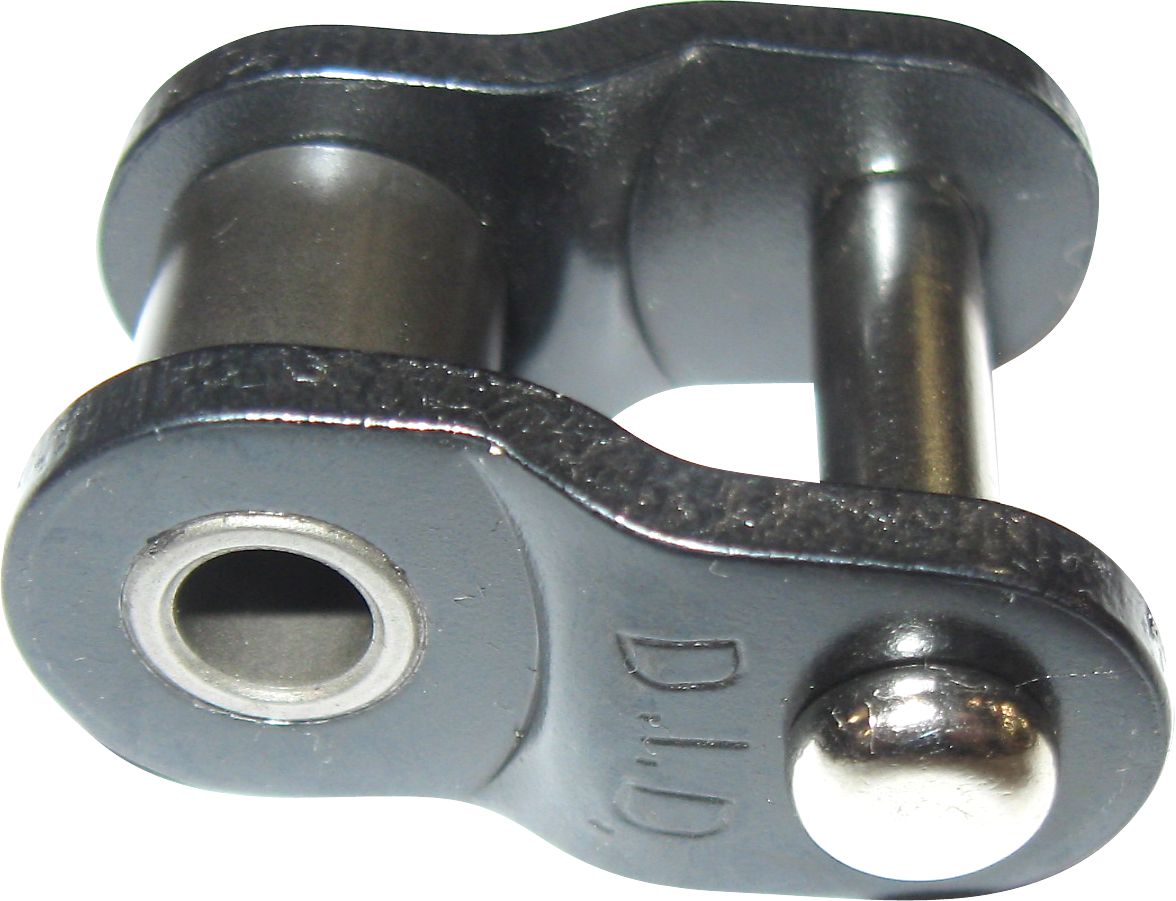

Offset Link (Half Link), Single Strand, Sintered Bushing, Steel, Industry No. 60, 3/4" Pitch, 9,460lbs Average Tensile Strength
(Pack of
5)
SKU:1443415 Item#: 1443415
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Frequently Bought Together
Connecting Link, Double Strand, Steel, Industry No. 50-2
$0.00
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Steel, Industry No. 50
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
$0.00
Couldn't load pickup availability
16ft Fiberglass Twin Ladder T7416
$0.00
Couldn't load pickup availability
10ft Fiberglass Leanig Lader L7310
$0.00
Couldn't load pickup availability
22ft Multi-Position ProLader FMT-22
$0.00
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 25-2
$0.00
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Stainless Steel, Industry No. 80
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443415 |
|---|---|
| Manufacturer Model #: | HL60UR |
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 60 |
| Pitch | 3/4 " |
| Roller Width | 0.500 " |
| Roller Diameter | 0.469 " |
| Plate Thickness | 0.126 " |
| Plate Height | 0.713 " |
| Average Tensile Strength | 9,460 lb |
| Maximum Load | 2,090 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
