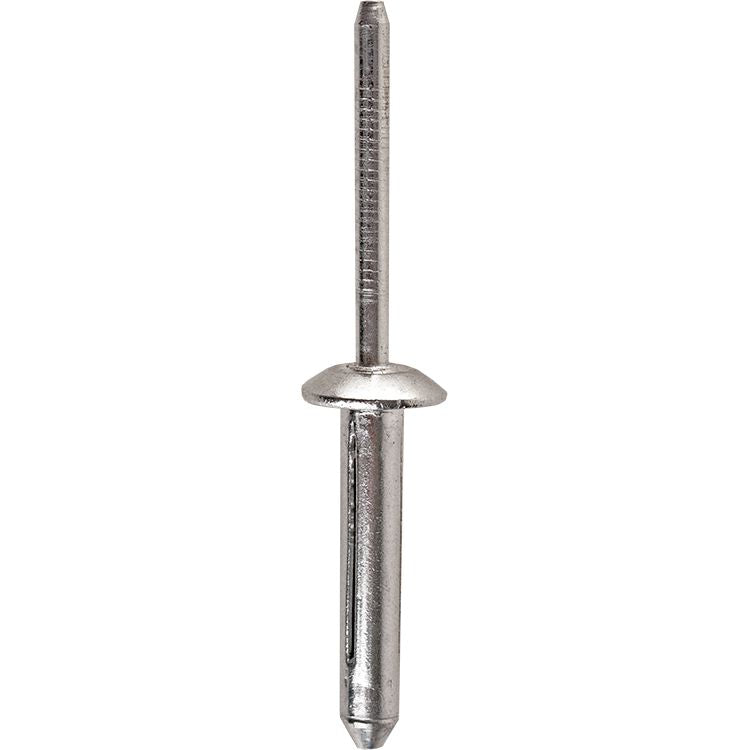

Tri-Fold Rivet Dome Head Aluminum 3/16"
(Pack of 100)

Kent Automotive

Dome Head
• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 11-116

Frequently Bought Together


Hex Nut Grade 8 Steel M10-1.5

Item#: 4305

Hammerlock Cotter Pin 1/8 x 2-1/2"

Item#: 1035

Hex Flange Nut Grade 8 Steel M10-1.5

Item#: 57130

Nosepiece for 1543731 Rivet Tool 5/32"

Item#: 1556559

Tigerbolt® Nosepiece for 1543732 Rivet Tool 3/16"

Item#: 1556568

Solid Rivet Brazier Head Hard Aluminum 3/16"

Item#: 85039

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Push-Type Retainer Nylon 20mm

Item#: P23453

Bumper Cover Push-Type Retainer Nylon 18mm

Item#: 1579409

SupraTITE® Structural Tri-Fold Rivet 3/16"

Item#: 1543665

SupraTITE® Structural Tri-Fold Rivet 1/4"

Item#: 1543667

SupraTITE® Structural Tri-Fold Rivet 3/16"

Item#: 1543664

Product Description

Dome Head
• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 90485
Type Tri-Fold
Head Style Dome Head
Material Body/Mandrel Aluminum/Aluminum
Diameter 3/16 "
Grip Range 0.040 – 0.354 "
Hole Size 0.196 – 0.209 "
Head Diameter 0.386 "
Head Height 0.062 "
Body Length 0.906 "
Shear Strength 202 lb
Tensile Strength 269 lb
UNSPSC #: 31162201
TAA Compliant: Yes
Weight: 0.39 lb
